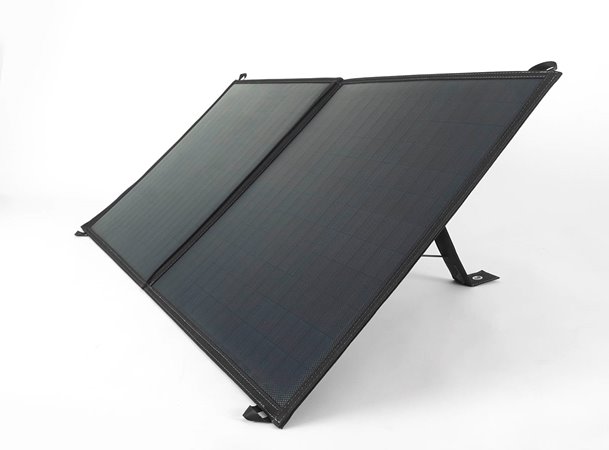

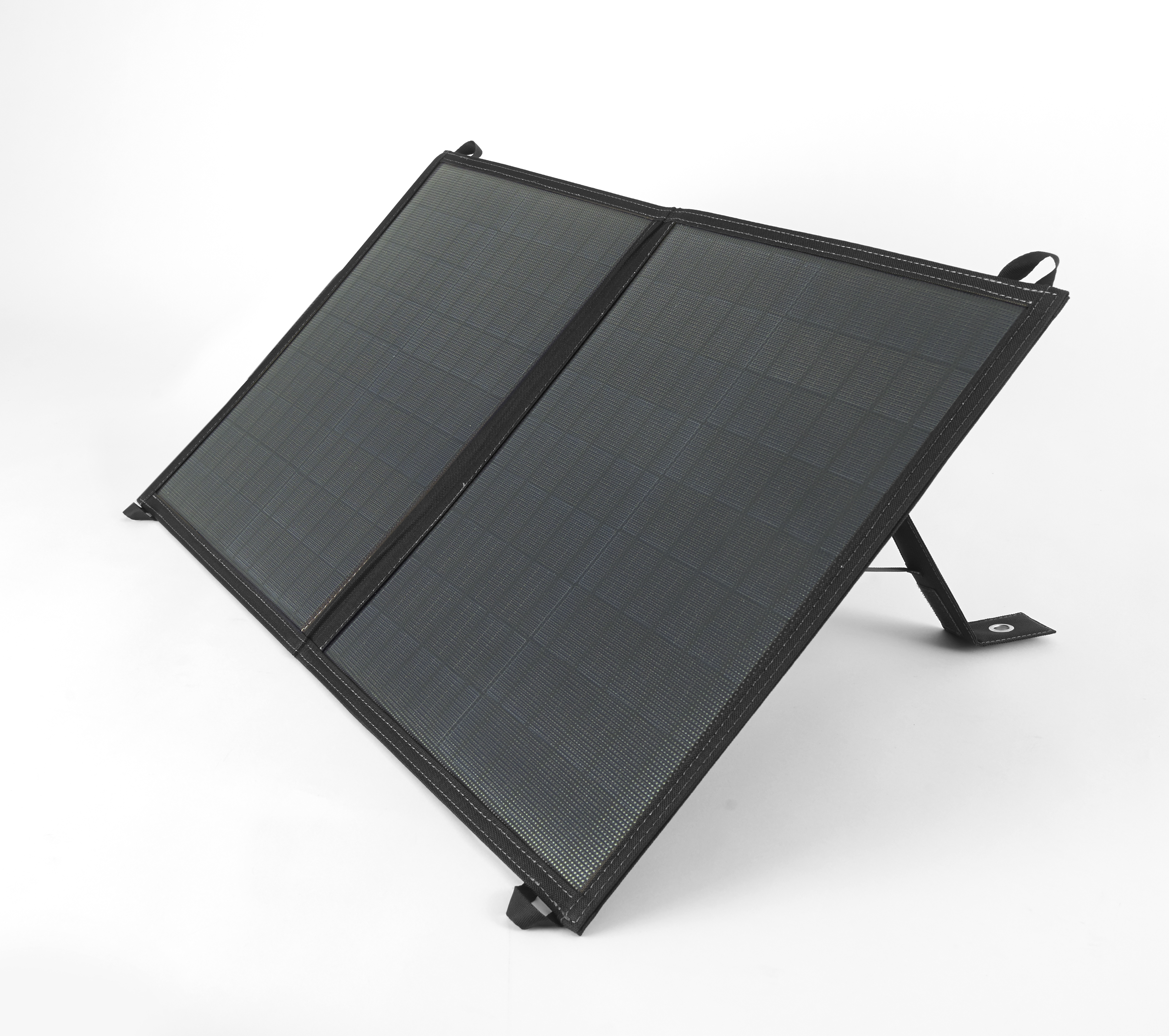

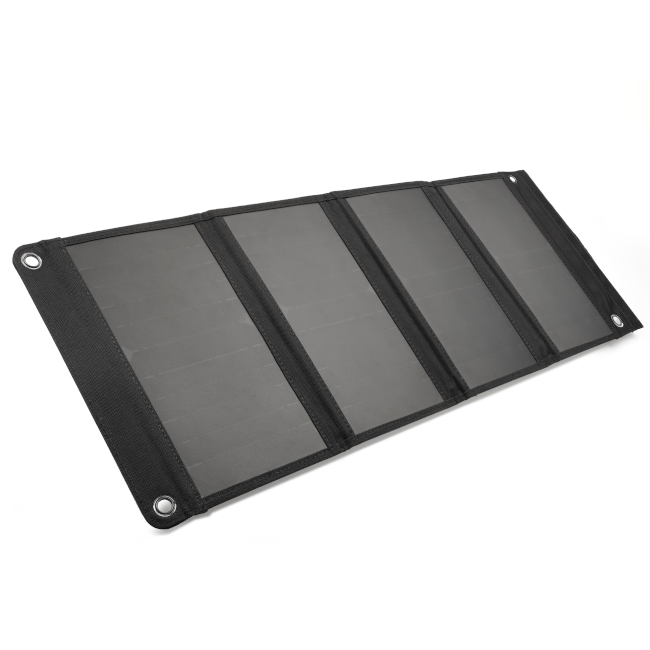

PV Logic fold up solar panels support

Fold up panels Downloads

Brochure

Instructions for 4w

Instructions for 40w, 60w and 90w.


Fold up panels FAQ

Can I extend the main cable coming from the panel to my caravan?

We don’t make an extension cable, but you can cut the main cable and extend it if you require. Please make sure you get the polarity correct.

What connection should I use on the end of my cable?

Choose the connection from the pack that fits your needs:
The crocodile clips for direct connection to the battery
The male car accessory connection if your vehicle / caravan has a car plug that is connected directly to the battery. Please note sometimes this plug is “turned off” when you’re not in the vehicle, or after 10 mins of leaving the vehicle.

(40w,60w and 90w only)
The car accessory socket is ideal if you have a portable battery bank that uses the male car accessory plug to charge it.

Please be aware that you should only use a single connection at a time on the output cable. If using more than one you WILL reverse the polarity of the power coming from the panel and either blow the charge controller on the panel, or damage your battery.

How do I know if it’s working? 4w only

A small LED on the front of the panel will change from red to green to show a connection is made and it is charging.

How do I know if it’s working? (40w, 60w and 90w only)

If you look at the LEDs on the controller on the back of the panel you will see two lights indicating the sun hitting the panel and a battery connected.

I am using the male car accessory but it is not charging my battery

Please make sure the socket you are using is live as some vehicles shut power off after a few mins of leaving the vehicle. If it is live, then it could be the fuse that’s fitted into the male plug. This simply screws off but watch out for the small spring popping out as you remove it.

Get in touch

If you have a specific question about PV Logic fold-up solar panels, or you would like to speak to a member of our technical team, please fill in your details on our contact support page.

Contact support  ›
