0 Reviews

30W Rigid Solar Panel Roof and Deck Top Kit

This 30W PV Logic solar panel roof and deck top kit enables the solar panel to be professionally fitted to the roof of a caravan, motorhome, yacht or narrow boat. Benefitting from a 10-year panel warranty, the 30W panel is ideal for off grid caravan or boat trips over a long weekend where power demand is limited to DC lighting, device charging and low power appliances such as a radios etc. Providing up to 180W per day, this roof top kit is supplied with a 30W PV Logic solar panel, a choice between our ABS corner brackets or our alloy L brackets, 10A dual battery charge controller, 4m cable, connectors, fuse, elastic adhesive, cable feed gland and user manual. You can upgrade to the MPPT Pro Plus charge controller. ... View more

Upgrade Charge Controller
Which controller do I need?
Select Fitting Brackets
Fitting your panel
£195.00
Product code: n/a
Product information

Overview

Build your perfect roof or deck top kit starting with a premium solar panel

With power ratings from 5W to 80W, our rigid solar panels fulfil a variety of energy needs, ranging from a continuous trickle feed of power to prevent battery drain in caravans, motorhomes and boats to creating energy self-sufficiency for off-grid travel.

For more power, see our PV Logic MHD Rigid Solar Panel range in 100W to 200W.

Rigid solar panels rated 80W and above include bypass diodes to minimise the effect of shadows so that energy generation is maximised.

Taking control

The roof and deck top kits include our 10A dual battery PWM controller as standard or, for the ultimate in rapid solar charging, you have the option of upgrading to the all new MPPT Pro Plus.

The MPPT Pro charge controller increases solar yield by up to 20% over a standard charge controller by artificially modifying the voltage from s solar panel system to actively match any battery's requirements.  This means that whatever the weather conditions your panels will deliver maximum power with minimum electrical loss.

The MPPT charge controller comes with its very own free-to-download Bluetooth app (Apple and Android) to display how the solar system is performing. The app software links your smartphone to the MPPT Pro and shows performance figures for your leisure battery.

All charge controllers have a two year warranty.

Complete your kit with fixing brackets

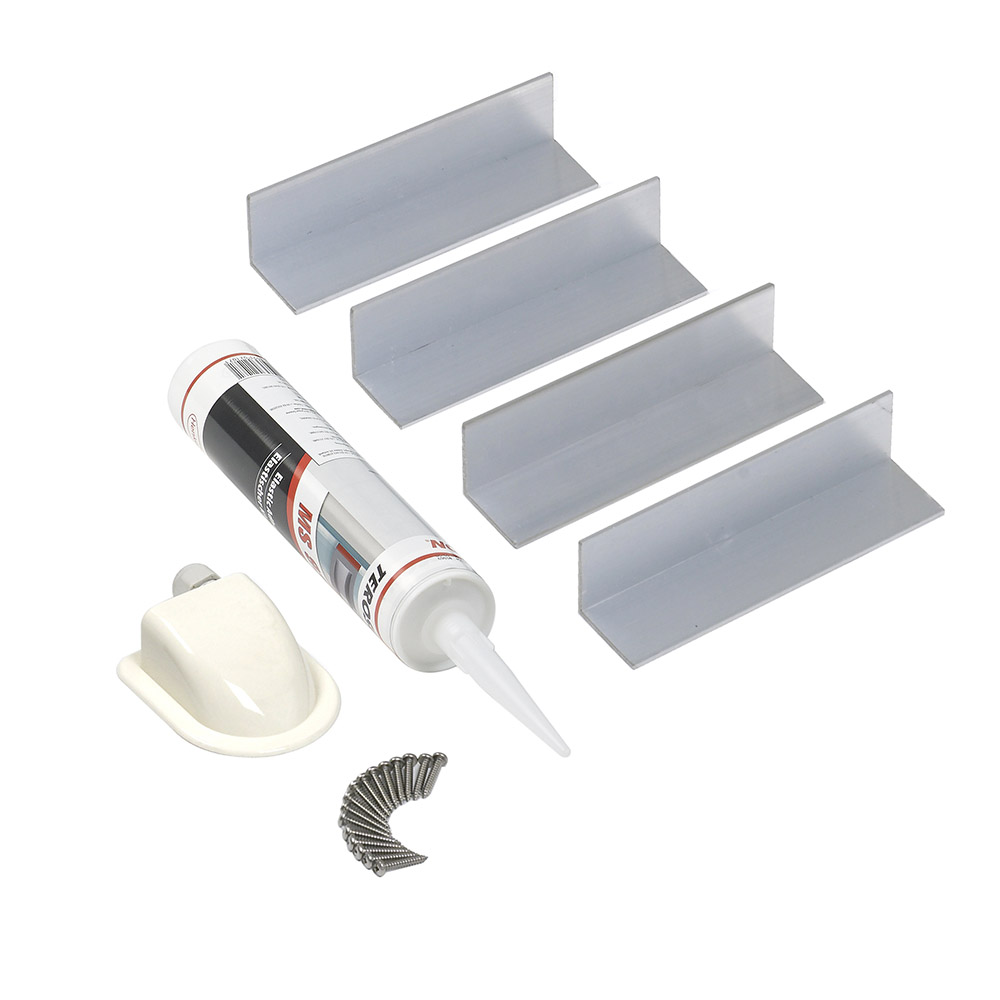

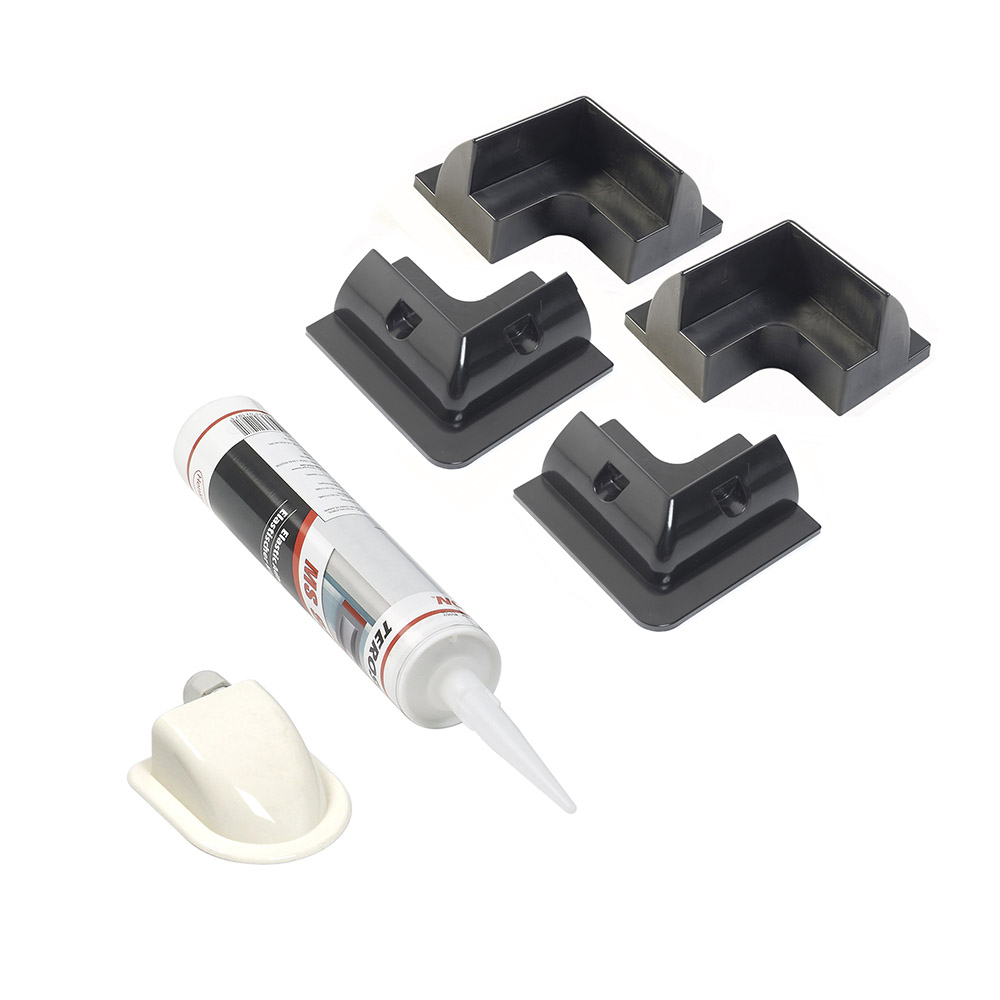

The roof and deck top kits come with our premium aero brackets as standard but there is also the choice of alloy L brackets, or ABS corners to secure the solar panel to your caravan, motorhome, boat or horsebox. A five year warranty is supplied with all brackets.

Product support

Find the user manual, advice on expanding a solar system and answers to frequently asked questions on our dedicated support page for PV Logic Rigid Solar Panels.



Features

Water resistant, robust construction for outdoor use.
Water resistant, robust construction for outdoor use.
In built diode protects against battery discharge
In built diode protects against battery discharge
Tough and robust
Tough and robust
10-year panel warranty
10-year panel warranty

Technical Specification



Power Size Weight
(kg)
Watts per
day (W)
Amp hours
per day (A)
Charge
Controller
Vmp (VDC) Imp (A) Voc(V) Isc(A)
5W 250 x 200 x 25mm 0.8 30 1.74 N/A 17.5 0.29 22 0.32 Download Tech Spec
10W 397 x 280 x 25mm 1.3 60 3.48 N/A 17.5 0.58 22 0.64 Download Tech Spec
20W 540 x 278 x 25mm 1.7 120 6.9 10A 17.5 1.15 22 1.27 Download Tech Spec
30W 660 x 380 x 25mm 2.7 180 10.3 10A 17.5 1.72 22 1.9 Download Tech Spec
45W 634 x 535 x 25mm 3.6 270 15.4 10A 17.5 2.58 22 2.86 Download Tech Spec
60W 670 x 640 x 35mm 4.5 360 20.94 10A 17.5 3.49 22 3.97 Download Tech Spec
60W (R) 1060 x 350 x 35mm 4.6 360 20.94 10A 17.5 3.49 22 3.97 Download Tech Spec
80W 836 x 670 x 35mm 6.7 480 27.9 10A 17.5 4.65 22 5 Download Tech Spec


Key

  • Vmp - Nominal voltage
  • Imp - Nominal current
  • Isc - Short circuit current
  • Watts and Amp hours/day based on six hours of average daily peak sunlight hours.



Roof and Deck Top Contents
1 x 30W solar panel
1 x 10A charge controller (or upgrade to 15Ah MPPT charge controller)
1 x  fitting brackets ( ABS corners or alloy angle)
1 x 4m cable bundle
1 x cable feed gland
1 x tube elastic adhesive
1 x pack fuses, ring terminals etc
1 x user manual

Warranty

Solar Panel
10-year panel warranty
Charge Controller
2-year warranty
