0 Reviews

60W Rigid Solar Panel- rectangular (R)

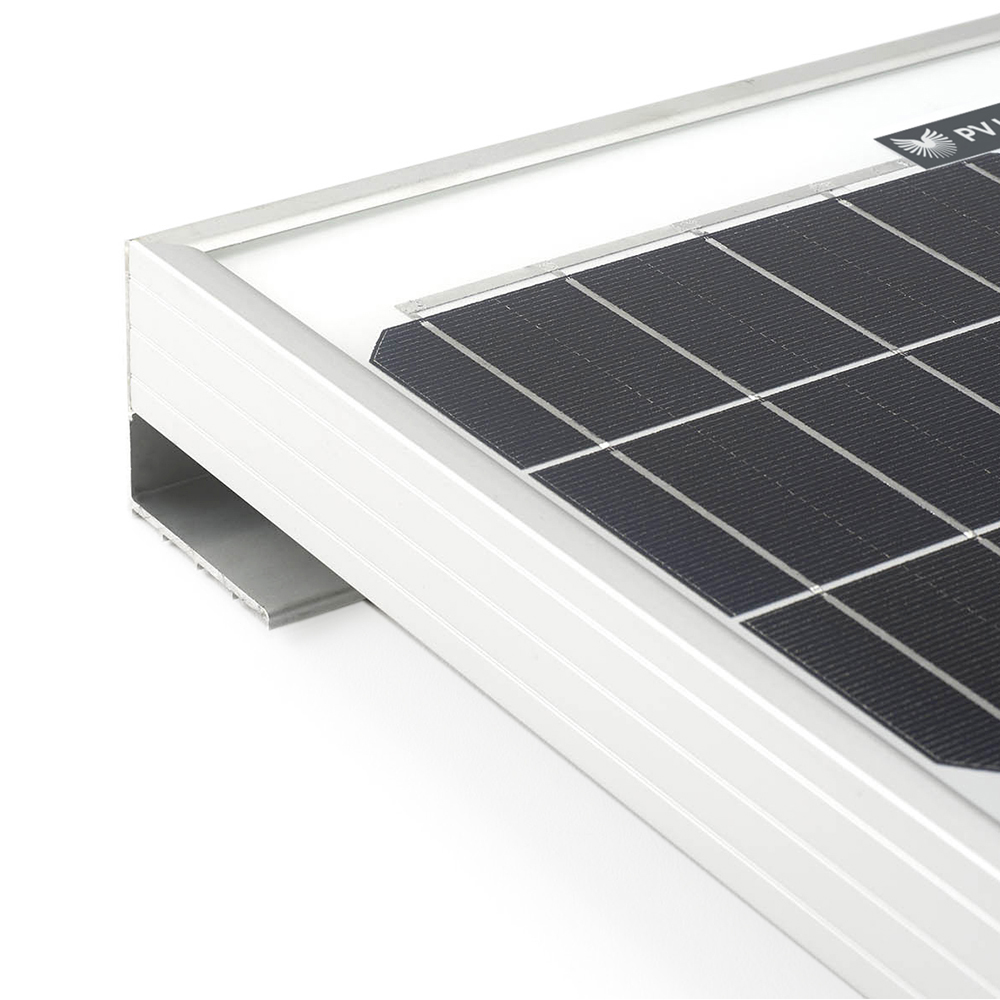

This version of the 60W PV Logic solar panel is long and narrow and best suited to roofs or deck tops with limited, or awkward, space. Delivering up to 360W per day, the 60W panel is suitable for powering most DC and some AC appliances via a separately purchased inverter. It is supplied with built in reverse L brackets to ensure the footprint is the smallest it can be. Benefitting from a 10-year panel warranty, it is supplied with a 4m cable, terminals, fuse and user manual. NOTE – A charge controller will be needed to protect a battery from reverse feed and overcharging. ... View more

Add Charge Controller
Which controller do I need?
£160.00
Product code: n/a
Product information

Overview

Product support

Find the user manual, advice on expanding a solar system and answers to frequently asked questions on our dedicated support page for PV Logic Rigid Solar Panels.

Build your perfect kit starting with a premium solar panel

Our 5W to 80W rigid solar panels fulfil a variety of energy needs ranging from a continuous trickle feed of power to prevent battery drain in caravans, motorhomes and boats to creating energy self-sufficiency for off-grid travel.

These rigid panels can also deliver energy to remote power systems, such as electric fences and gates as well as pumps in garden ponds.

For higher rated power, see our PV Logic MHD Rigid Solar Panel range in 100W to 200W.

Rigid solar panels rated 80W and above include bypass diodes to minimise the effect of shadows so that energy generation is maximised.

A charge controller should be used for rigid solar panels of 20W and above to protect the battery from being overcharged and to prevent reverse current drain. For more information about what sets the PV Logic Rigid range apart from other solar panels click here.

Put yourself in control

All our charge controllers are capable of charging 12V and 24V single or dual batteries.

Upgrading to the MPPT Pro charge controller increases solar yield by up to 20% over a standard charge controller by artificially modifying the voltage from s solar panel system to actively match any battery's requirements.  This means that whatever the weather conditions your panels will deliver maximum power with minimum electrical loss.

The MPPT charge controller comes with its very own free-to-download Bluetooth app (Apple and Android) to display how the solar system is performing. The app software links your smartphone to the MPPT Pro and shows performance figures for a single or dual battery/batteries - very useful in a motorhome where the system can intelligently charge the leisure and starter batteries.

An optional Activity Monitor is also available with the MPPT Pro to provide all performance data on a LCD display.

Complete your kit

Choose the PV Logic 60w rigid roof and deck top kit to give you all you need to complete a professional installation. The kit comes with a 10A charge controller, 4m cable, connectors, fuse, bonding agent, cable feed gland and detailed installation instructions. You have the option of upgrading to the MPPT Pro charge controller.

Features

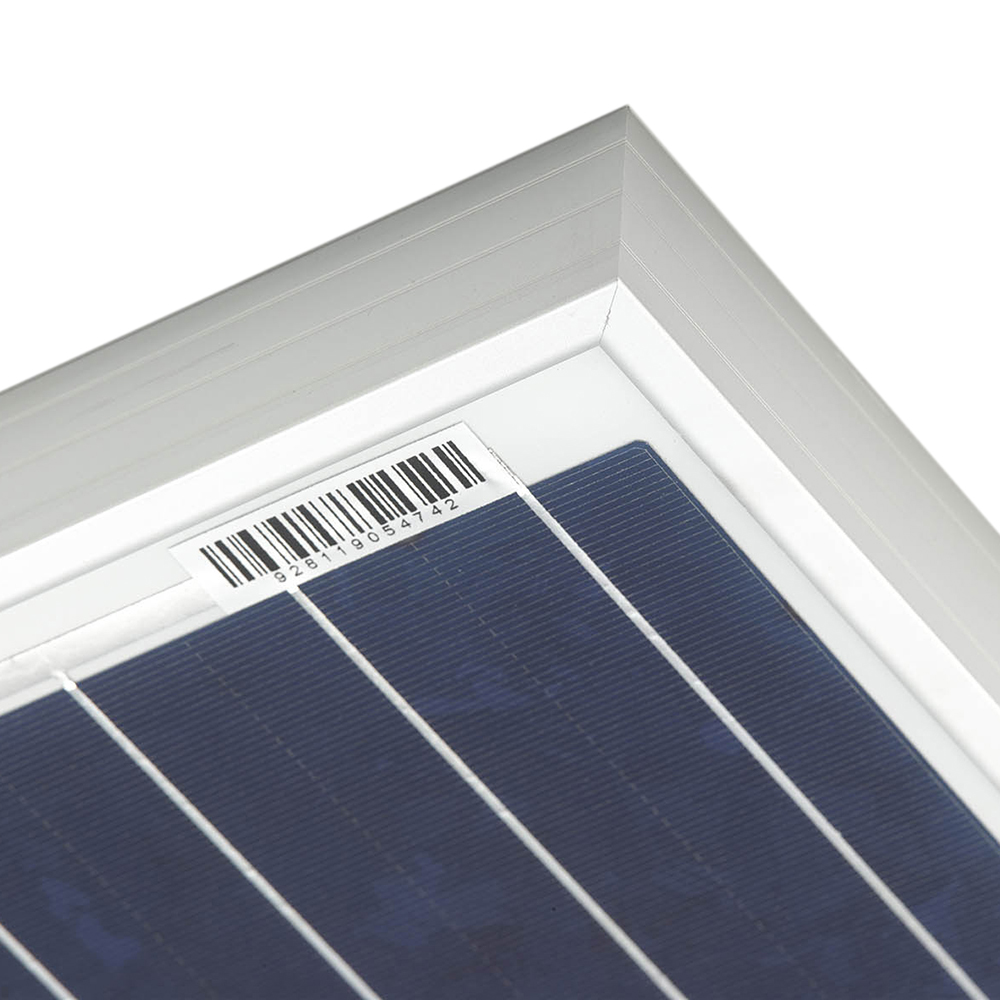

High efficiency crystalline cell for all weather charging
High efficiency crystalline cell for “all weather” charging
Water resistant, robust construction for outdoor use.
Water resistant, robust construction for outdoor use.
In built diode protects against battery discharge
In built diode protects against battery discharge
Tough and robust
Tough and robust
10 year module warranty
10 year module warranty

Technical Specification



Power Size Weight
(kg)
Watts per
day (W)
Amp hours
per day (A)
Charge
Controller
Vmp (VDC) Imp (A) Voc(V) Isc(A)
5W 250 x 200 x 25mm 0.7 30 1.74 N/A 17.5 0.29 22 0.32 Download Tech Spec
10W 397 x 280 x 25mm 1.3 60 3.48 N/A 17.5 0.58 22 0.64 Download Tech Spec
20W 540 x 278 x 25mm 1.7 120 6.9 10A 17.5 1.15 22 1.27 Download Tech Spec
30W 660 x 380 x 25mm 2.7 180 10.3 10A 17.5 1.72 22 1.9 Download Tech Spec
45W 634 x 535 x 25mm 3.6 270 15.4 10A 17.5 2.58 22 2.86 Download Tech Spec
60W 670 x 640 x 35mm 4.5 360 20.94 10A 17.5 3.49 22 3.97 Download Tech Spec
60W (R) 1060 x 350 x 35mm 4.6 360 20.94 10A 17.5 3.49 22 3.97 Download Tech Spec
80W 836 x 670 x 35mm 6.7 480 27.9 10A 17.5 4.65 22 5 Download Tech Spec


Key

  • Vmp - Nominal voltage
  • Imp - Nominal current
  • Isc - Short circuit current
  • Watts and Amp hours/day based on six hours of average daily peak sunlight hours.

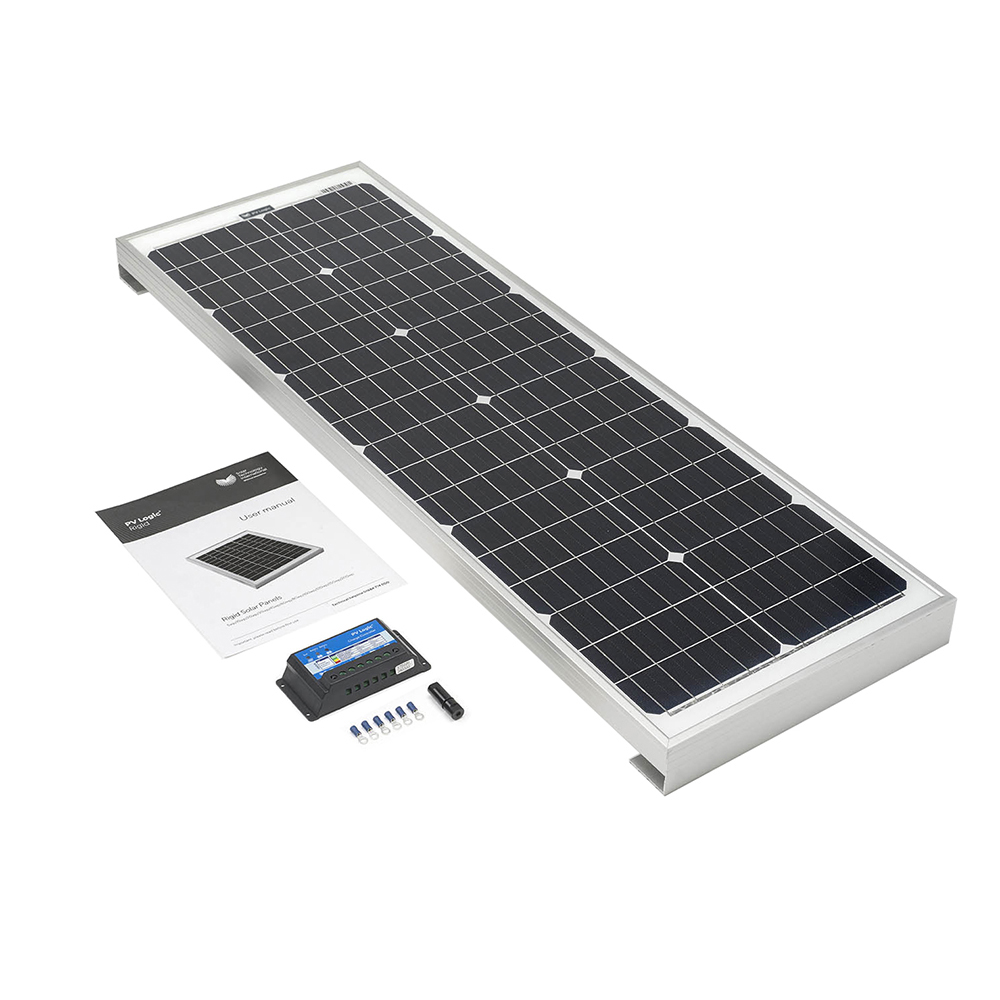

Solar Panel Contents
1 x 60W solar panel with aluminium fixing bracket attached
1 x 4m cable bundle
1 x pack fuses, ring terminals etc
1 x user manual
10-year panel warranty

Option to add the charge controller of your choice

Warranty

10-year panel warranty
