60W Rigid Solar Panel Roof and Deck Top Kit

This 60W PV Logic solar panel roof and deck top kit enables the solar panel to be professionally fitted to the roof of a caravan, motorhome, yacht or narrow boat. The 60W PV Logic solar panel is often a standard fit for caravan and campervan manufacturers alike. Delivering up to 360W per day, the panel benefits from a 10-year panel warranty and is suitable for powering most DC and some AC appliances via a separately purchased inverter. This roof and deck top kit is supplied with a 60W PV Logic solar panel, our premium aero brackets, 10A dual battery charge controller, 4m cable, connectors, fuse, elastic adhesive, cable feed gland and user manual. You can upgrade to the MPPT Pro Plus charge controller as well as select an alternative fitting option. ... View more

Upgrade Charge Controller
Which controller do I need?
Select Fitting Brackets
Fitting your panel
£320.00
Product code: n/a
Product information

Overview

Build your perfect roof or deck top kit starting with a premium solar panel

With power ratings from 5W to 80W, our rigid solar panels fulfil a variety of energy needs, ranging from a continuous trickle feed of power to prevent battery drain in caravans, motorhomes and boats to creating energy self-sufficiency for off-grid travel.

For more power, see our PV Logic MHD Rigid Solar Panel range in 100W to 200W.

Rigid solar panels rated 80W and above include bypass diodes to minimise the effect of shadows so that energy generation is maximised.

Taking control

The roof and deck top kits include our 10A dual battery PWM charge controller as standard or, for the ultimate in rapid solar charging, you have the option of upgrading to the all new MPPT Pro Plus.

The MPPT Pro charge controller increases solar yield by up to 20% over a standard charge controller by artificially modifying the voltage from s solar panel system to actively match any battery's requirements.  This means that whatever the weather conditions your panels will deliver maximum power with minimum electrical loss.

The MPPT charge controller comes with its very own free-to-download Bluetooth app (Apple and Android) to display how the solar system is performing. The app software links your smartphone to the MPPT Pro and shows performance figures for your leisure battery.

All charge controllers have a two year warranty.

Complete your kit with fixing brackets

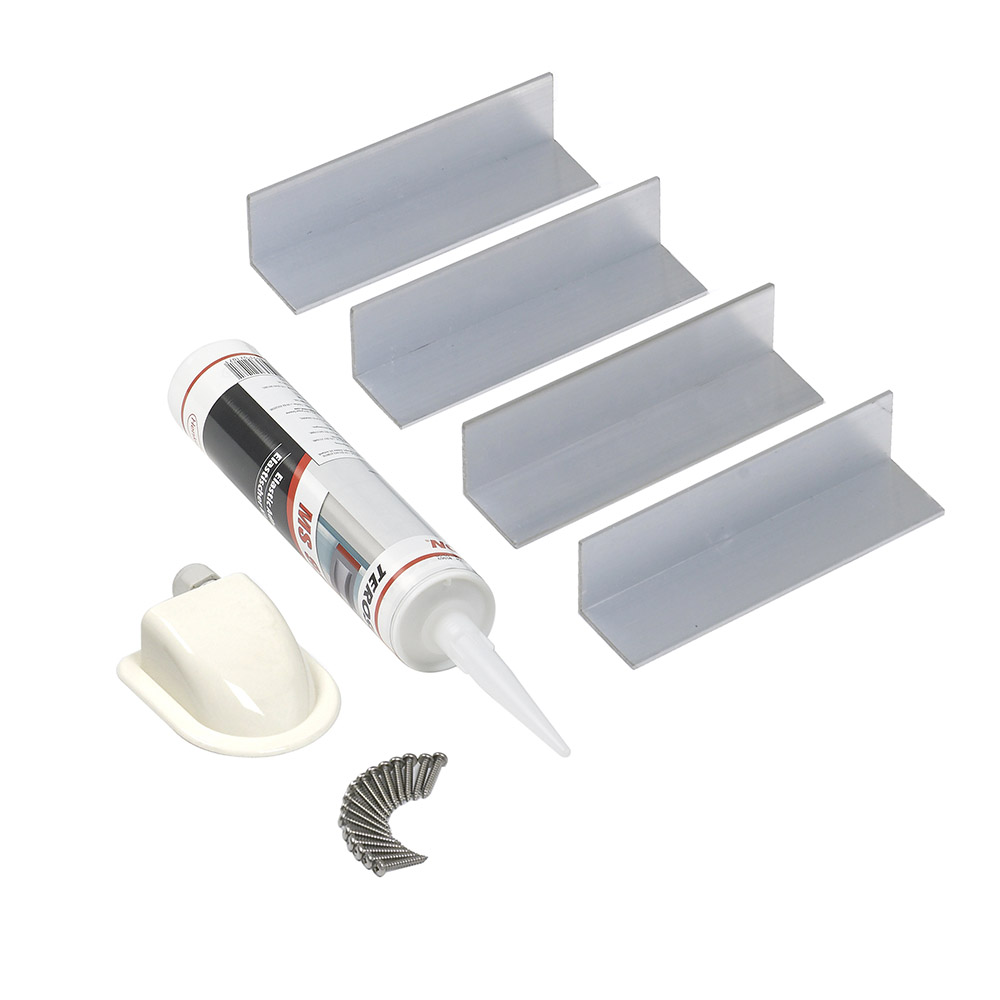

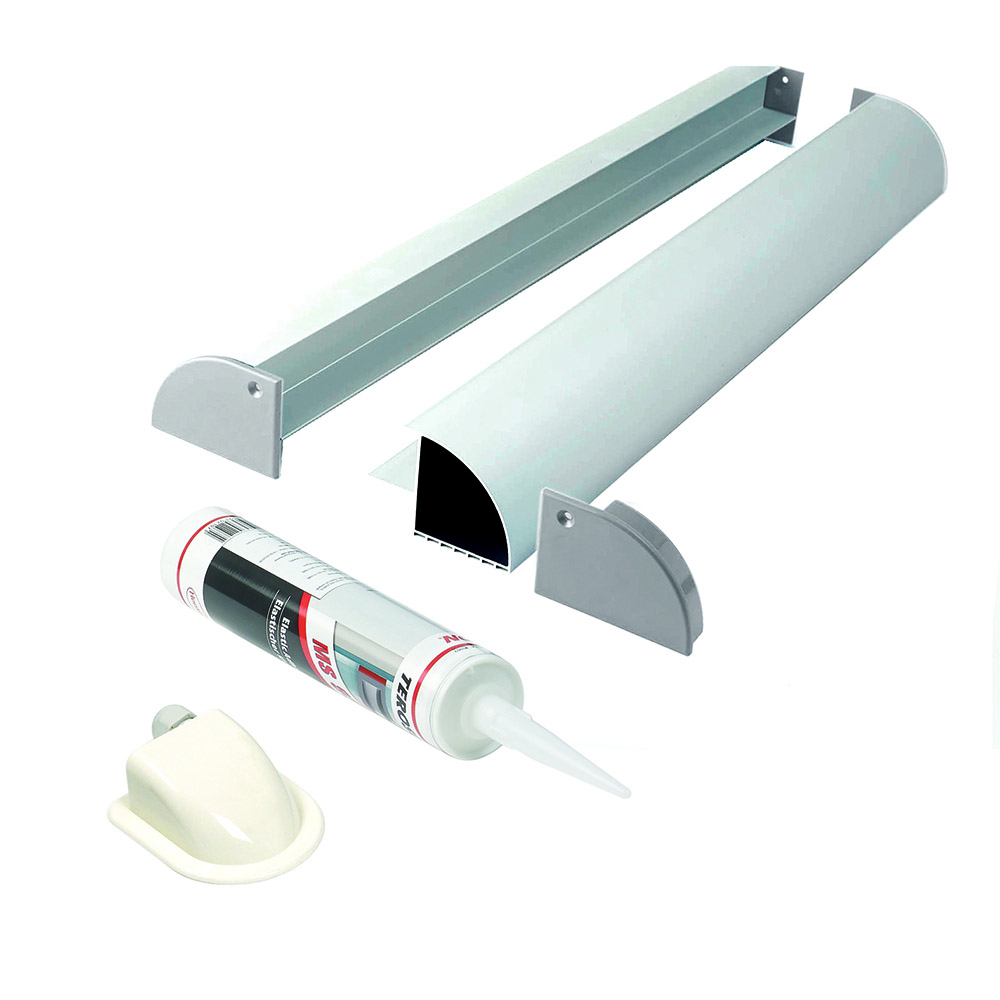

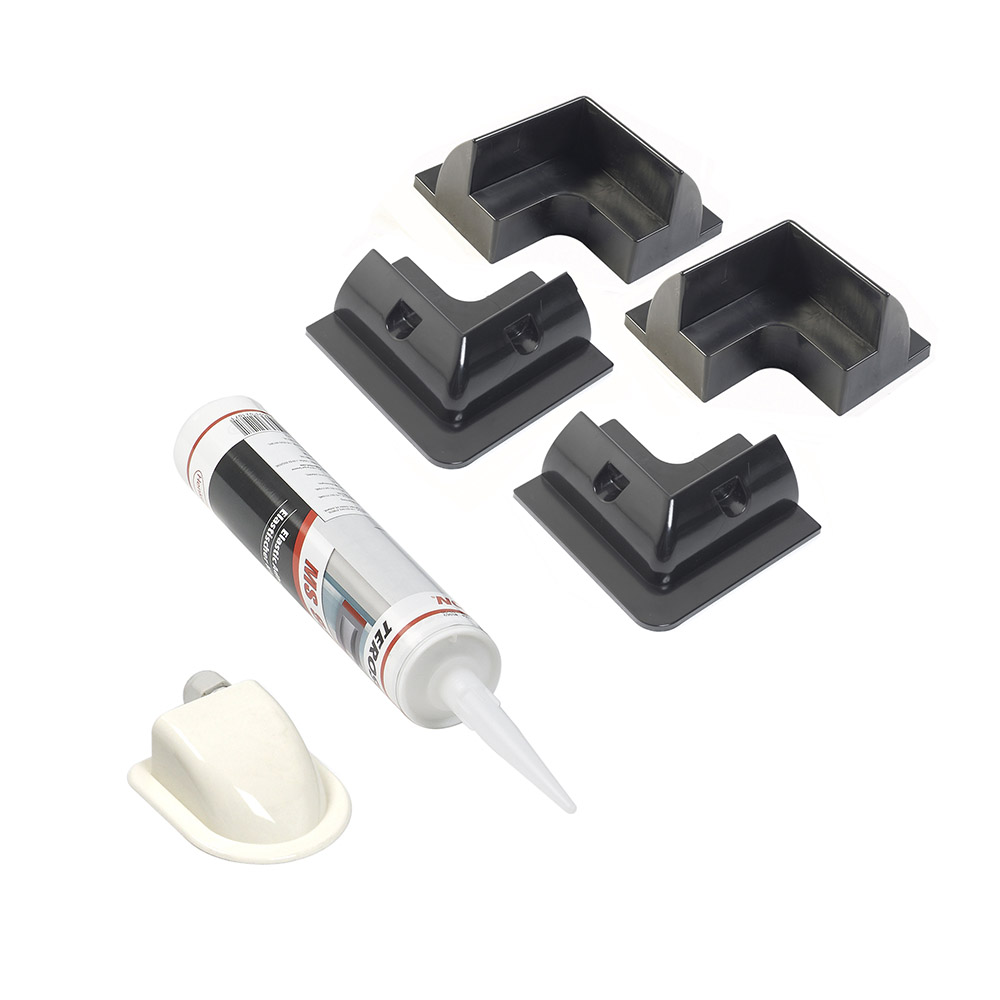

The roof and deck top kits come with our premium aero brackets as standard but there is also the choice of alloy L brackets, or ABS corners to secure the solar panel to your caravan, motorhome, boat or horsebox.

Product support

Find the user manual, advice on expanding a solar system and answers to frequently asked questions on our dedicated support page for PV Logic Rigid Solar Panels.

Features

Water resistant, robust construction for outdoor use.
Water resistant, robust construction for outdoor use.
Tough and robust
Tough and robust
10-year panel warranty
10-year panel warranty

Technical Specification



Power Size Weight
(kg)
Watts per
day (W)
Amp hours
per day (A)
Charge
Controller
Vmp (VDC) Imp (A) Voc(V) Isc(A)
5W 250 x 200 x 25mm 0.7 30 1.74 N/A 17.5 0.29 22 0.32 Download Tech Spec
10W 397 x 280 x 25mm 1.3 60 3.48 N/A 17.5 0.58 22 0.64 Download Tech Spec
20W 540 x 278 x 25mm 1.7 120 6.9 10A 17.5 1.15 22 1.27 Download Tech Spec
30W 660 x 380 x 25mm 2.7 180 10.3 10A 17.5 1.72 22 1.9 Download Tech Spec
45W 634 x 535 x 25mm 3.6 270 15.4 10A 17.5 2.58 22 2.86 Download Tech Spec
60W 670 x 640 x 35mm 4.5 360 20.94 10A 17.5 3.49 22 3.97 Download Tech Spec
60W (R) 1060 x 350 x 35mm 4.6 360 20.94 10A 17.5 3.49 22 3.97 Download Tech Spec
80W 836 x 670 x 35mm 6.7 480 27.9 10A 17.5 4.65 22 5 Download Tech Spec


Key

  • Vmp - Nominal voltage
  • Imp - Nominal current
  • Isc - Short circuit current
  • Watts and Amp hours/day based on six hours of average daily peak sunlight hours.

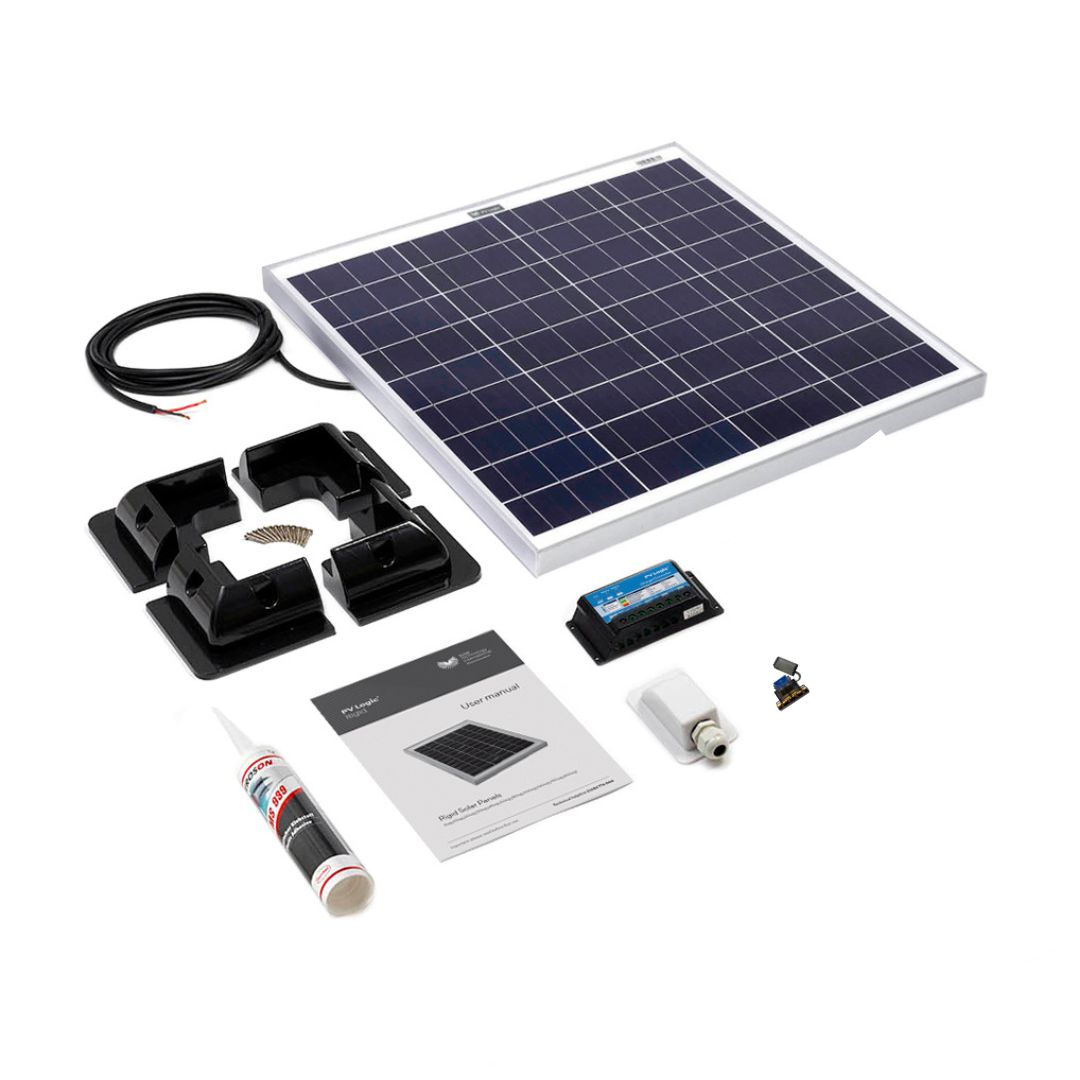

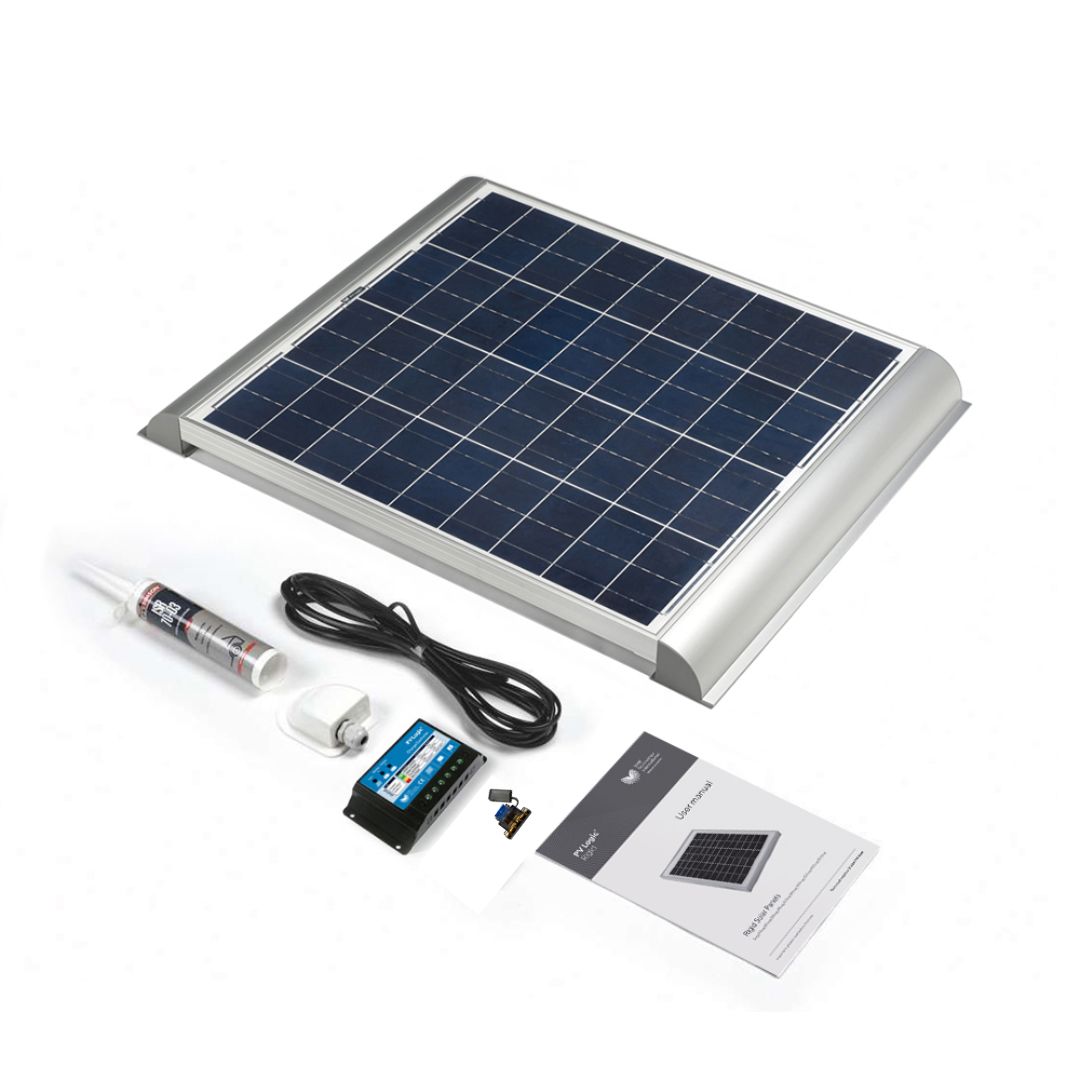

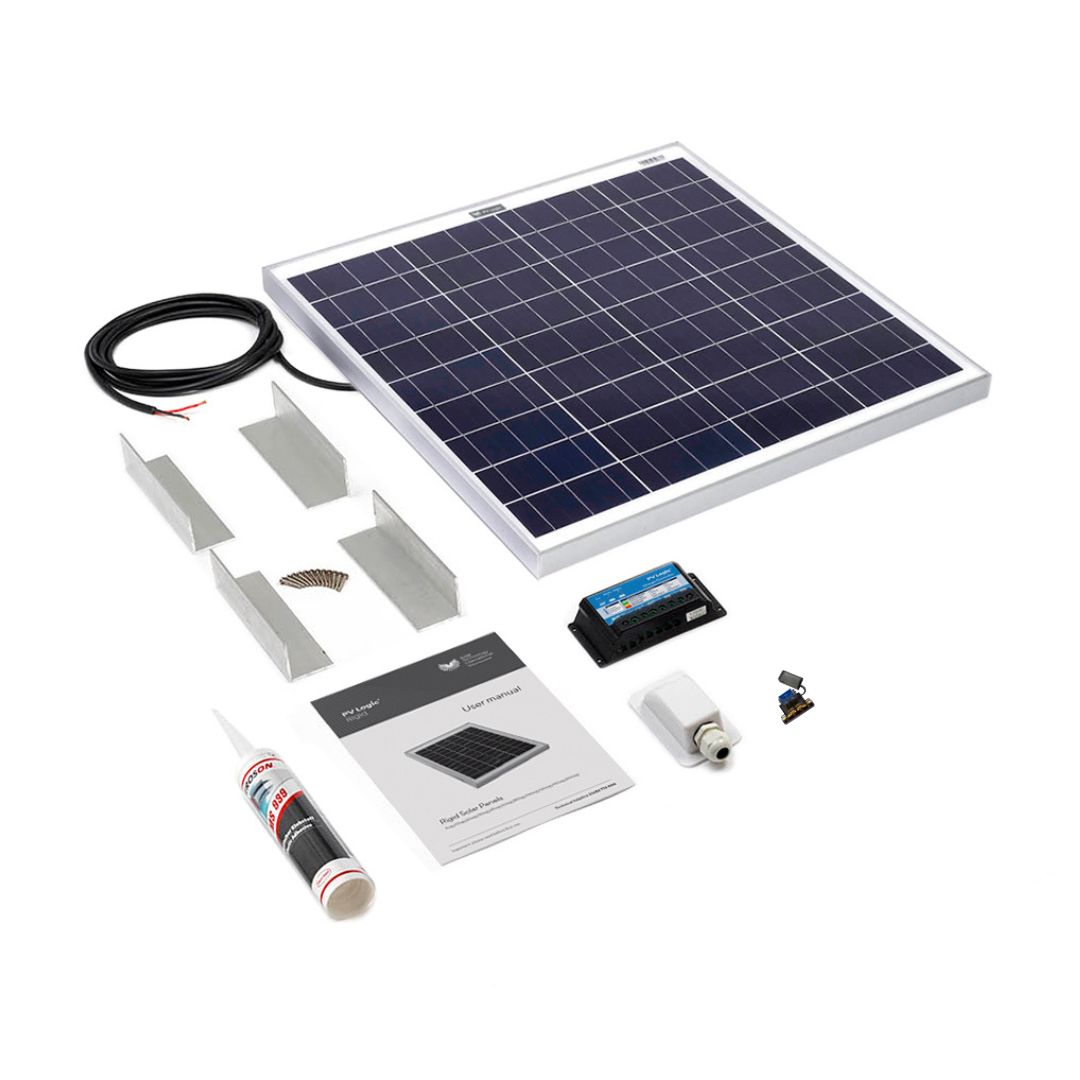

Roof and Deck Top Contents
1 x 60W solar panel
1 x 10A charge controller (or upgrade to 15Ah MPPT charge controller)
1 x aero fitting kit (or select an alternative bracket)
1 x 4m cable bundle
1 x cable feed gland
1 x tube elastic adhesive
1 x pack fuses, ring terminals etc
1 x user manual

Warranty

Solar Panel
10-year panel warranty
Charge Controller
2-year warranty
Other kit contents
5-year warranty
