80w Rigid Solar Panel Roof and Deck Top Kit

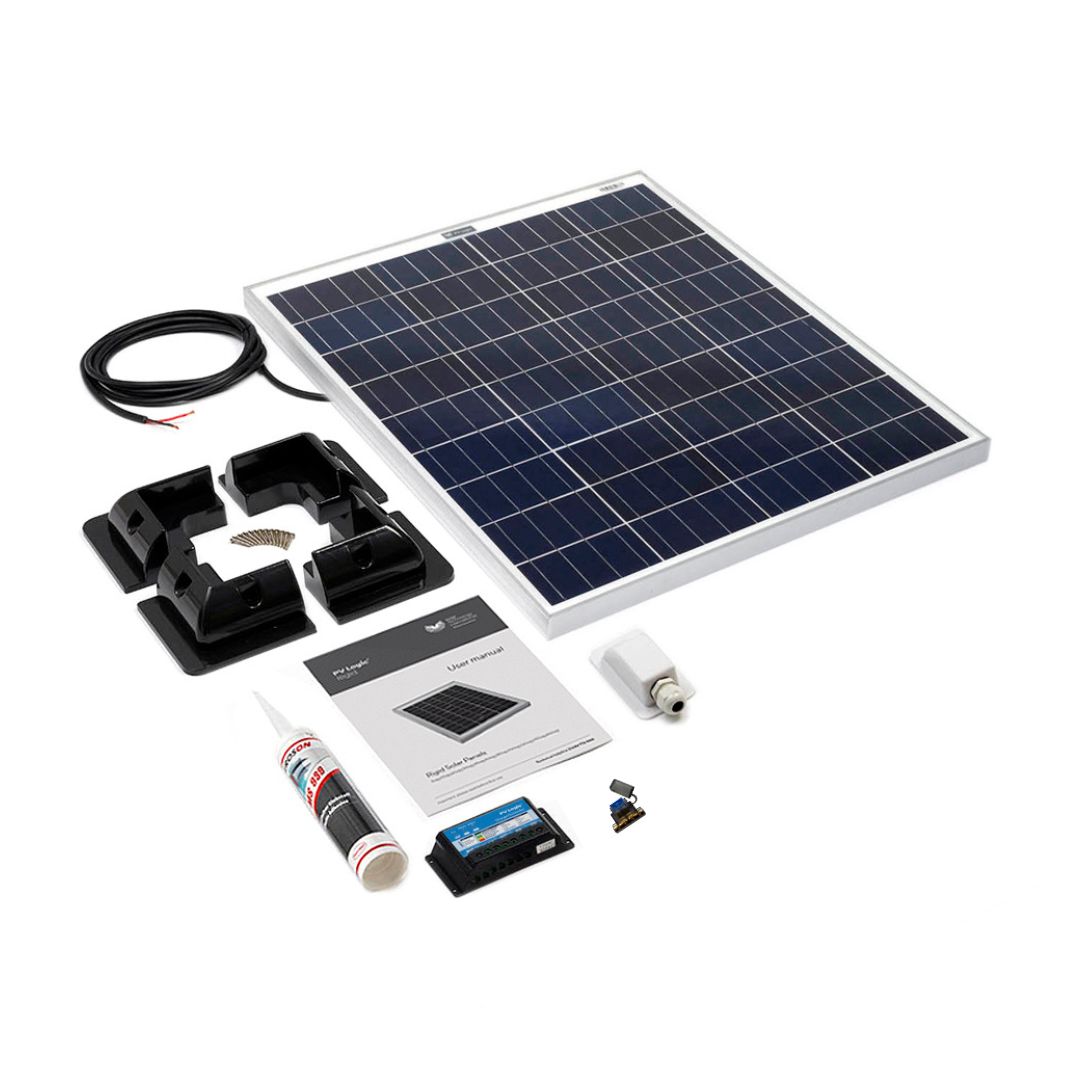

This 80w PV Logic solar panel roof and deck top kit enables the solar panel to be professionally fitted to the roof of a caravan, motorhome, yacht or narrow boat. Delivering up to 520wh per day, the PV Logic 80w solar panel benefits from a 10 year product warranty and can fully charge an 85Ah battery on a sunny summer's day day in the UK. Perfect for off grid caravans, boats, motorhomes and a good choice where a smaller amount of power is needed during the dark days of winter. This roof and deck top kit is supplied with a 80w PV Logic solar panel, our premium aero brackets, 10Ah dual battery charge controller, 4m cable, connectors, fuse, bonding agent, cable feed gland and detailed installation instructions. You can upgrade to the MPPT charge controller (with optional display if required) as well as select an alternative fitting option. ... View more

Upgrade Charge Controller
Which controller do I need?
Select Fitting Brackets
Fitting your panel
£250.00
Product code: n/a
Product information

Overview

Build your perfect roof or deck top kit starting with a premium solar panel

With power ratings from 5W to 200W, our rigid solar panels fulfil a variety of energy needs ranging from a continuous trickle feed of power to prevent battery drain in caravans, motorhomes and boats to creating energy self-sufficiency for off-grid travel.

Rigid solar panels rated 80W and above include bypass diodes to minimise the effect of shadows so that energy generation is maximised.

All panels come with a 10 year product warranty.

Taking control

The roof and deck top kits include our 10Ah controller as standard but for high performance PWM technology and the ultimate in rapid solar charging, you have the option of upgrading to the all new MPPT Pro.  Both are capable of charging 12V and 24V single or dual batteries.

The MPPT Pro charge controller increases solar yield by up to 20% over a standard charge controller by artificially modifying the voltage from s solar panel system to actively match any battery's requirements.  This means that whatever the weather conditions your panels will deliver maximum power with minimum electrical loss.

The MPPT charge controller comes with its very own free-to-download Bluetooth app (Apple and Android) to display how the solar system is performing. The app software links your smartphone to the MPPT Pro and shows performance figures for a single or dual battery/batteries - very useful in a motorhome where the system can intelligently charge the leisure and starter batteries.

An optional Activity Monitor is also available with the MPPT Pro to provide all performance data on a LCD display.

All charge controllers have a two year product warranty.

Complete your kit with fixing brackets

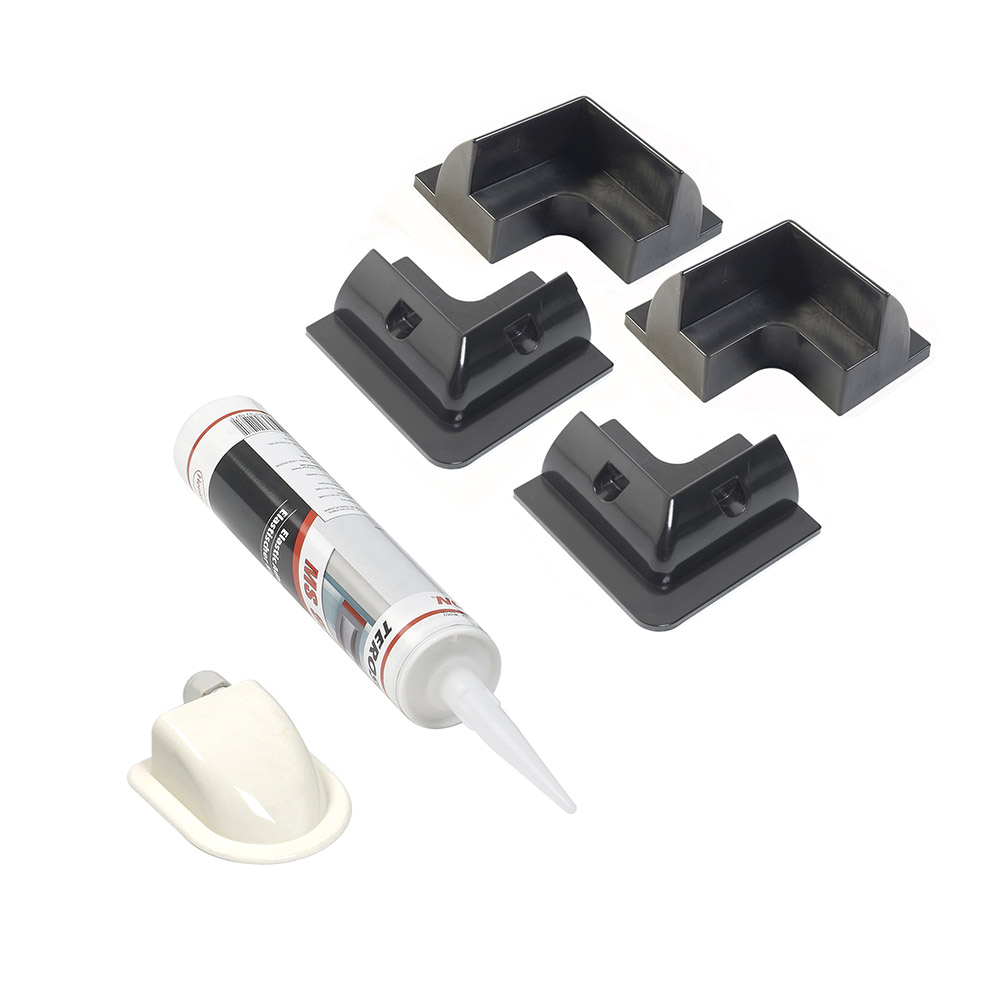

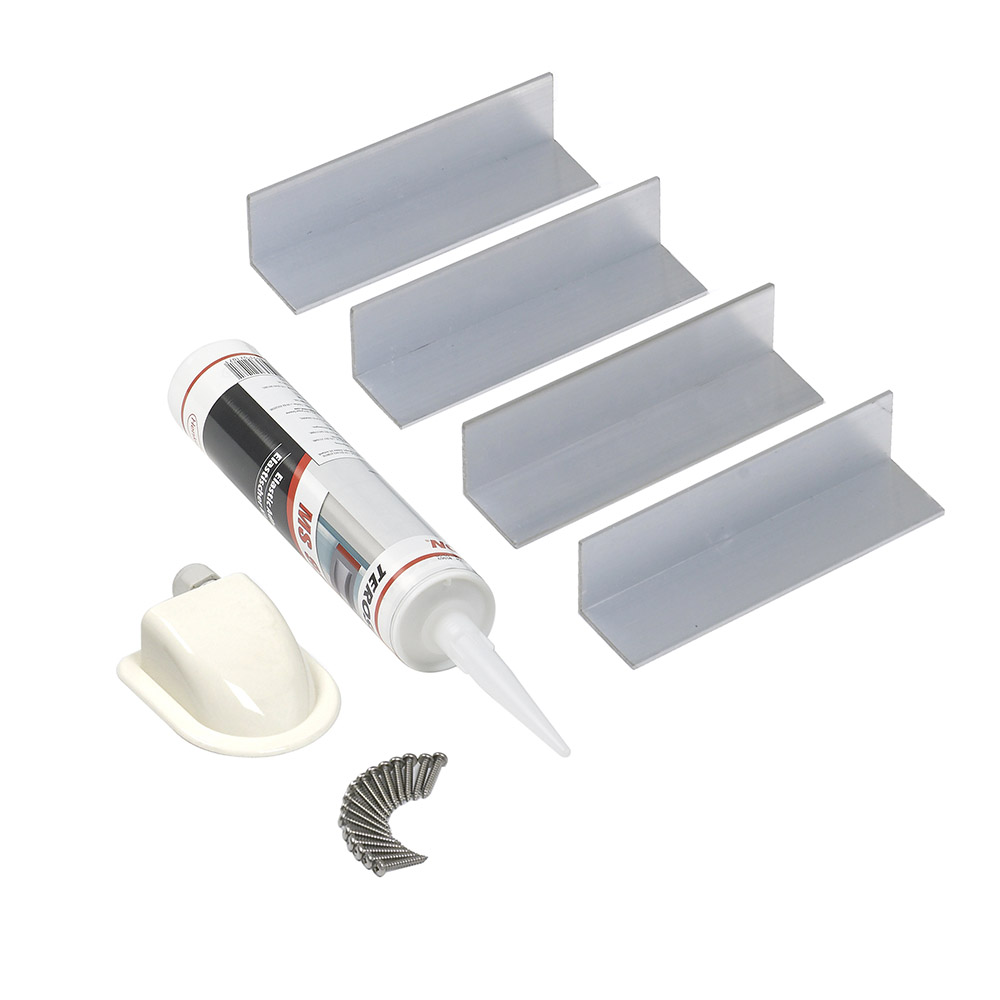

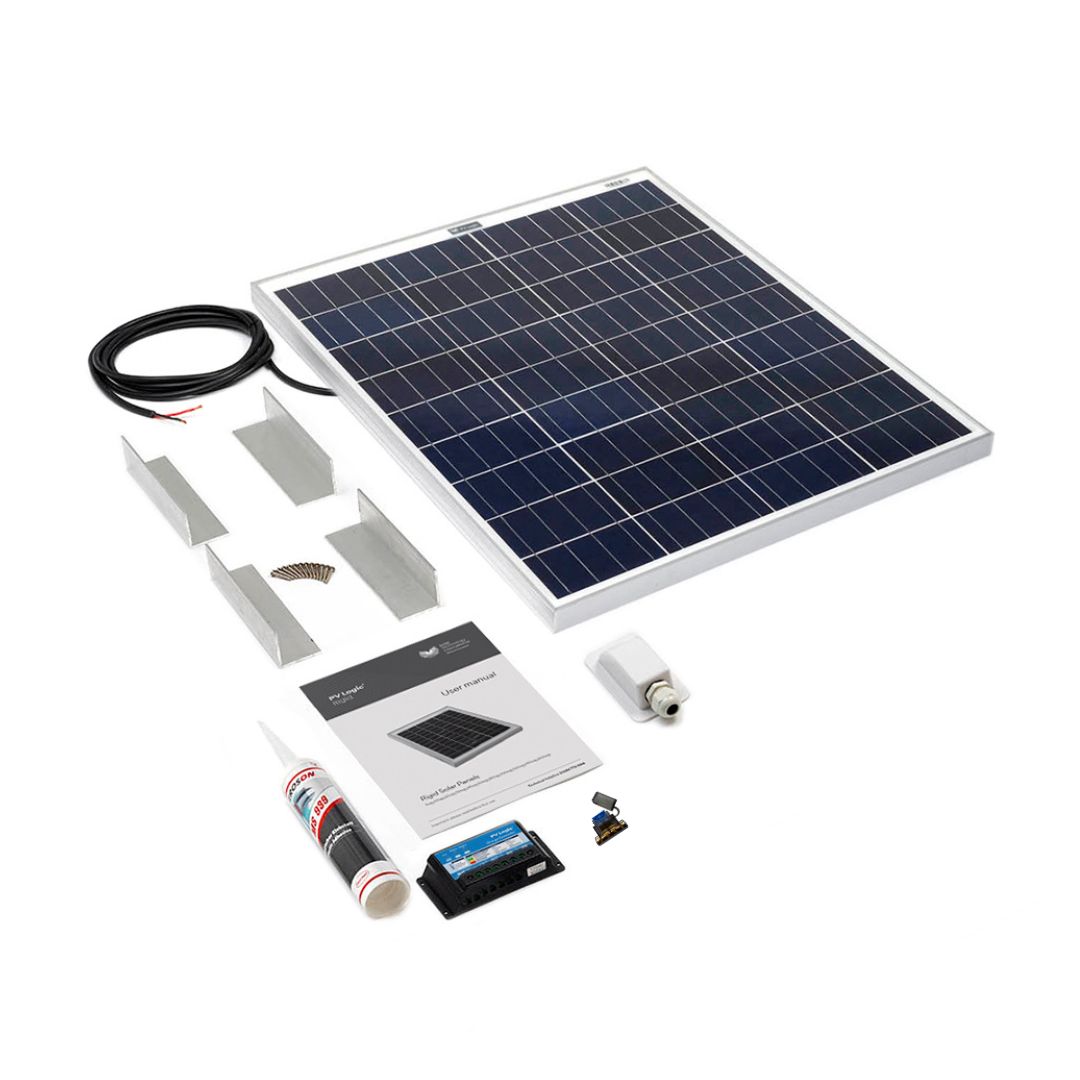

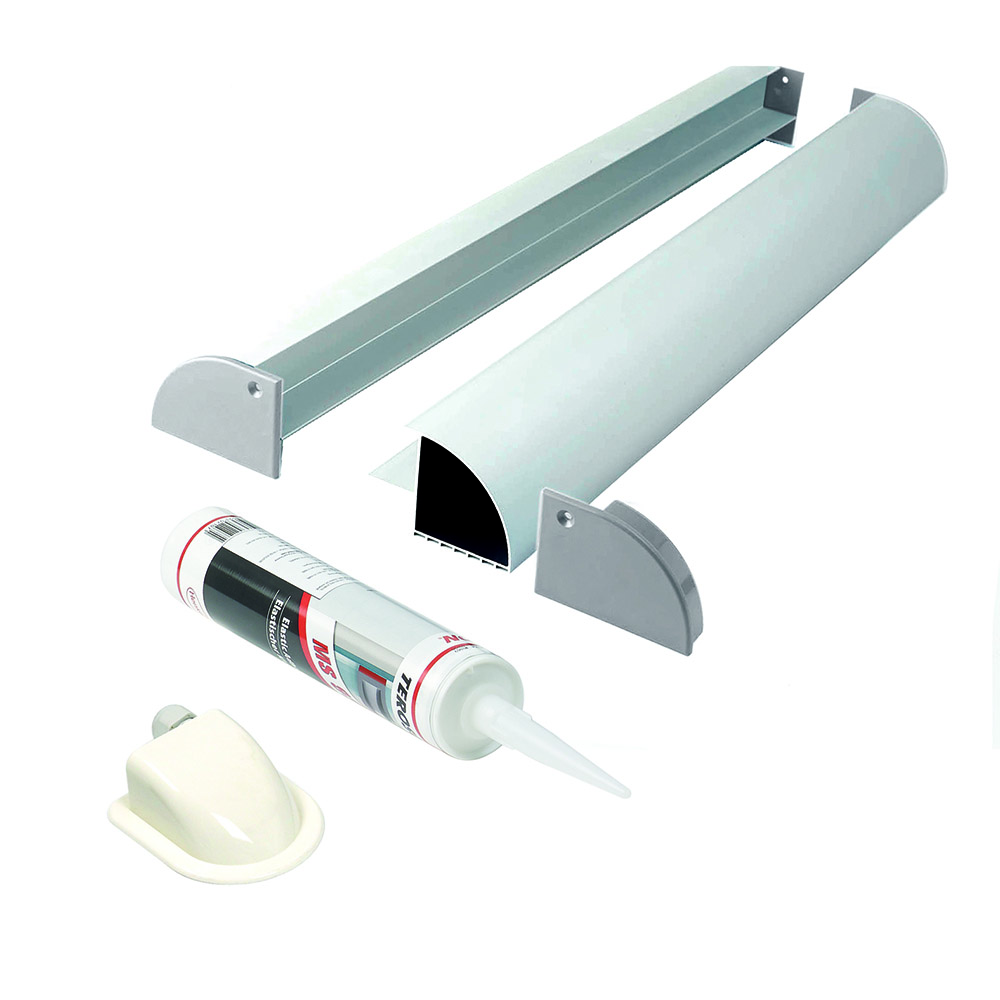

The roof and deck top kits come with our premium aero brackets as standard but there is also the choice of alloy L brackets, or ABS corners to secure the solar panel to your caravan, motorhome, boat or horsebox. For narrowboats there is a specially-designed fixing bracket. A five year warranty is supplied with all brackets.

**Cell performance warranty states that at 20 years the cell output will be no less than 80% of new performance values – i.e the cell degradation rate will be no greater than 20% in 20 years

Features

High efficiency crystalline cell for all weather charging
High efficiency crystalline cell for “all weather” charging
Water resistant, robust construction for outdoor use.
Water resistant, robust construction for outdoor use.
In built diode protects against battery discharge
In built diode protects against battery discharge
20 year cell performance warranty
20 year cell performance warranty**
Tough and robust
Tough and robust
10 year module warranty
10 year module warranty

Technical Specification



Power Size Weight
(kg)
Watts per
day (W)
Amp hours
per day (A)
Charge
Controller
Vmp (VDC) Imp (A) Voc(V) Isc(A)
5W 250 x 200 x 25mm 0.8 30 1.74 N/A 17.5 0.29 22 0.32 Download Tech Spec
10W 397 x 280 x 25mm 1.3 60 3.48 N/A 17.5 0.58 22 0.64 Download Tech Spec
20W 540 x 278 x 25mm 1.7 120 6.9 10Ah 17.5 1.15 22 1.27 Download Tech Spec
30W 660 x 380 x 25mm 2.7 180 10.3 10Ah 17.5 1.72 22 1.9 Download Tech Spec
45W 634 x 535 x 25mm 3.6 270 15.4 10Ah 17.5 2.58 22 2.86 Download Tech Spec
60W 670 x 640 x 35mm 4.5 360 20.94 10Ah 17.5 3.49 22 3.97 Download Tech Spec
60W (R) 1060 x 350 x 35mm 4.6 360 20.94 10Ah 17.5 3.49 22 3.97 Download Tech Spec
80W 836 x 670 x 35mm 6.7 480 27.9 10Ah 17.5 4.65 22 5 Download Tech Spec
100W 1005 x 670 x 35mm 7.8 600 30.72 10Ah 19.5 5.12 23 5.45 Download Tech Spec
120W 1195 x 670 x 35mm 9.2 720 41.88 10Ah 17.5 6.98 22 7.93 Download Tech Spec
150W 1475 x 670 x 35mm 11.1 900 52.32 10Ah 17.5 8.72 22 9.72 Download Tech Spec
200W 1850 x 670 x 35mm 14.8 1200 60.4 20Ah 17.5 10.5 22 11.45 Download Tech Spec


Key

  • Vmp - Nominal voltage
  • Imp - Nominal current
  • Isc - Short circuit current
  • Watts and Amp hours/day based on six hours of average daily peak sunlight hours.



Roof and Deck Top Contents
1 x 80w solar panel
1 x 10Ah charge controller (or upgrade to 15Ah MPPT charge controller)
1 x aero fitting kit (or select an alternative bracket)
1 x 4m cable bundle
1 x cable feed gland
1 x tube bonding agent
1 x pack fuses, ring terminals etc
1 x fitting instructions

Warranty

Solar Panel
10 year module warranty
20 year cell warranty**
Please note
**Cell performance warranty states that at 20 years the cell output will be no less than 80% of new performance values – i.e the cell degradation rate will be no greater than 20% in 20 years

Charge Controller
Two year product warranty
Other kit contents
Five year warranty
