125W Flexi Double ETFE Solar Panel - Top Exit

Featuring a tough, double-sided, laminated outer layer, the 125W Flexi Double ETFE solar panel is designed and built for durability. High weather and corrosion resistant, the panel is IPX7 rated and tested to ASTM B117 - ISO9227. That’s proven exposure to saltwater spray for more than 1000 hours as well as accelerated Ultraviolet (UV) testing to ISO 4892.... View more

Add Charge Controller
Which controller do I need?
£400.00
Product code: n/a
Product information

Overview

The benefits of ETFE

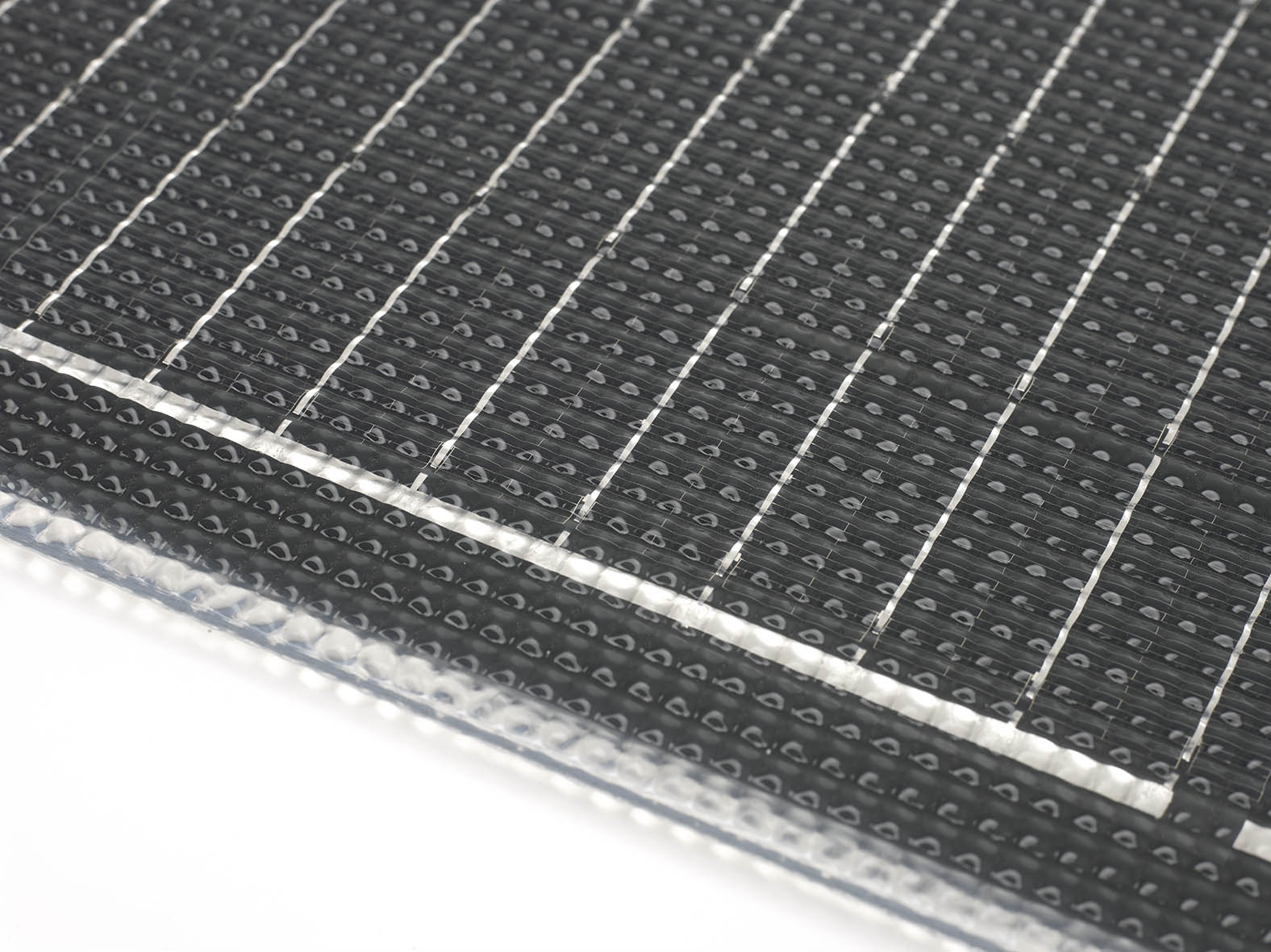

The dimpled surface pattern in our Flexi double ETFE Flexi panels deliver excellent light transmission to the high efficiency monocrystalline solar cells maximising solar power generation.

The panels are suitable for flat and slightly curved surfaces and perfect for campervans and leisure vehicle roofs where panel weight needs to be minimised.

Completely waterproof

Each panel is assembled to ensure complete encapsulation. This ensures the six layer heavy duty laminate protects the solar cell circuit from extreme conditions. The junction box is also injected with special silicone, guaranteeing no water ingress.

Superior design

There are no square edges on a PV Logic flexi solar panel! Rounded panel corners and a unique curved junction box provide superior adhesion, no snag lamination and no sharp edges. The junction box is mechanically fixed in addition to being bonded to the panel. Strain relief is provided for the fitted UV stabilised PV cable ensuring it cannot be accidentally pulled from the junction box.

Easy fix

The flexi range can be bonded to flat or slight curved surfaces (3cm curve per metre) such as painted aluminium, metal, GRP and fibreglass using Henekel MS939 elastic adhesive, or similar.

Installation method

Please only use the glue pattern below for land based vehicles and applications (this is covered in more detail in the instructions), which ensures air flow under the panel is achieved preventing heat build-up and potential warping under extreme heat.

Add a controller

The PV Logic range of charge controllers includes the 10A and 20A dual battery PWM models and, for high performance and the ultimate in rapid solar charging, there is the MPPT Pro series. Both are capable of charging 12V and 24V batteries.

Our MPPT Pro charge controllers increase solar yield by up to 20% over a standard charge controller by artificially modifying the voltage from a solar panel system to actively match any battery's requirements. This means that whatever the weather conditions your panels will deliver maximum power with minimum electrical loss.

The MPPT charge controller comes with its very own free-to-download Bluetooth app (Apple and Android) to display how the solar system is performing.

Complete your kit with fixing accessories

Buy PV Logic stands, brackets and fixings here

Product support

Find user manual, advice on expanding a solar system and answers to frequently asked questions on our dedicated support page for PV Logic Flexi double ETFE Solar Panels.

Features

High efficiency crystalline cell for all weather charging
High efficiency crystalline cell for “all weather” charging
Water resistant, robust construction for outdoor use.
Water resistant, robust construction for outdoor use.
In built diode protects against battery discharge
In built diode protects against battery discharge
Salt spray tested
Salt spray tested
Tough and robust
Tough and robust
UV light tested
UV light tested
2-year panel warranty
2-year panel warranty

Technical Specification


Power Size Weight
(kg)
Watts per
day (W)
Amp hours
per day (A)
Charge
Controller
Pmax (WP) Vmp (VDC) Imp (A) Voc(V) Isc(A)
55W Double ETFE Top Exit 600 x 600 x 4mm 2.6 330 19.32 10A 55 17.1 3.22 20.0 3.78 Download Tech Spec
60W Double ETFE Top Exit 395 x 880 x 4mm 2.8 360 19.8 10A 60 18.2 3.30 21.3 3.46 Download Tech Spec
125W Double ETFE Top Exit 665 x 1035 x 4mm 4.6 750 38.7 20A 125 19.4 6.45 22.1 6.77 Download Tech Spec
125W Double ETFE Rear Exit

665 x  980 x 4mm

5.1 750 38.7 20A 125 19.4 6.45 22.1 6.77 Download Tech Spec
180W Double ETFE Top Exit

670 x 1520x 4mm

6.8 1080 52.7 20A 180

20.5

8.79 24.0 9.22 Download Tech Spec
180W Double ETFE  Rear Exit 670 x 1480 x 4mm 7.3 1080 352.7 20A 180 20.5 8.79 24.0 9.22 Download Tech Spec


Key

  • Vmp - Nominal voltage
  • Imp - Nominal current
  • Isc - Short circuit current
  • Watts and Amp hours/day based on six hours of average daily peak sunlight hours.

Contents
1 x 125W semi-flexible double ETFE solar panel - top exit
1 x 4m cable (attached)
1 x fuse & holder
1 x user manual

Warranty

The PV Logic Double ETFE flexi panels come with a 2-year warranty.

Please note

All of our semi flexible panels will only bend from the top (has the cable and logos) to the bottom a maximum of 10% of panel length.
Bending the panel greater than this, or trying to bend the panel from left to right will possibly damage the panel and also invalidate your warranty.
