200W Mono High Density Rigid Solar Panel Roof and Deck Top Kit

The 200W PV Logic MHD rigid roof and deck top kit is the perfect choice for high power demands when on the move. Maximise roof top capacity by wiring multiple 200W panels together, either in series or parallel, to provide your very own off grid power supply. The roof kit provides everything needed to install the 200W MHD panel and comes complete with premium aero brackets, 20A PWM charge controller, cable gland, elastic adhesive and user manual. ... View more

Upgrade Charge Controller
Which controller do I need?
Select Fitting Brackets
Fitting your panel
£460.00
Product code: n/a
Product information

Overview

Build your perfect roof and deck top kit starting with a premium solar panel

With power ratings up to 200W, our rigid MHD solar panels fulfil a variety of energy needs ranging from a continuous trickle feed of power to prevent battery drain in caravans, motorhomes and boats to creating energy self-sufficiency for off-grid travel. For more information about what sets the PV Logic Rigid MHD range apart from other solar panels click here.

A charge controller should be used with MHD solar panels to protect the battery from being overcharged and to prevent reverse current drain.

Put yourself in control

The 10A and 20A PWM charge controllers are capable of charging 12V and 24V single or dual batteries.

Our MPPT charge controllers increases solar yield by up to 20% over a standard charge controller by artificially modifying the voltage from a solar panel system to actively match any battery's requirements.  This means that whatever the weather conditions your panels will deliver maximum power with minimum electrical loss.

The 15A MPPT Pro can charge dual batteries, the 20A and 30A Pro Plus models charge a single battery.

All PV Logic MPPT charge controllers come with free-to-download Bluetooth app (Apple and Android) to display how the solar system is performing. The app software links your smartphone to the charge controller and shows performance figures for the leisure battery.

Opt for the brackets of your choice

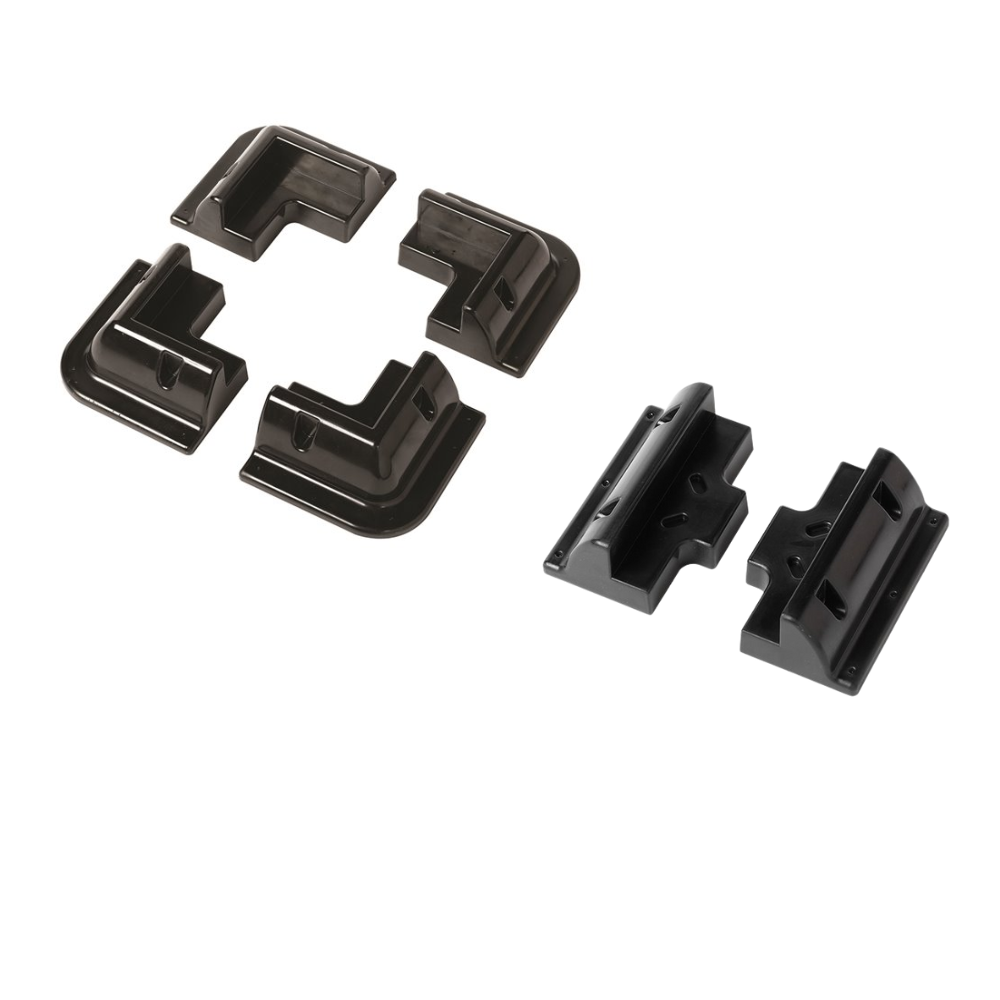

Our premium aero brackets are the most popular option to install MHD Rigid panels. There is also the option of fitting the panel with ABS corner brackets.  The roof and deck top kit comes with a 20A PWM charge controller plus the opportunity to upgrade the to a model in the MPPT Pro range.

Product support

Find the user manual, advice on expanding a solar system and answers to frequently asked questions on our dedicated support page for PV Logic Rigid Solar Panels.

Features

Water resistant, robust construction for outdoor use.
Water resistant, robust construction for outdoor use.
In built diode protects against battery discharge
In built diode protects against battery discharge
Tough and robust
Tough and robust
10-year panel warranty
10-year panel warranty

Technical Specification



Power Size Weight
(kg)
Watts per
day (W)
Amp hours
per day (A)
Charge
Controller
Vmp (VDC) Imp (A) Voc(V) Isc(A)
100W 1150 x 460 x 35mm 6.9 600 31.92 10A 18.8 5.32 22.2 5.64 Download Tech Spec
125W 988 x 670 x 35mm 7.5 750 23.52 10A 31.9 3.92 37.6 4.15 Download Tech Spec
150W 1150 x 670 x 35mm 6.9 900 47.88 10A 18.8 7.98 22.2 8.46 Download Tech Spec
200W 1520 x 670 x 35mm 11.8 1200 48 20A 25.0 8.00 29.5 8.48 Download Tech Spec


Key

  • Vmp - Nominal voltage
  • Imp - Nominal current
  • Isc - Short circuit current
  • Watts and Amp hours/day based on six hours of average daily peak sunlight hours.

Roof and Deck Top Contents
1 x 200W MHD solar panel with 2 x 1m cable with MC4 connectors
1 x 20A charge controller (or upgrade to 15Ah, 20Ah or 30Ah MPPT charge controller)
1 x premium aero bracket fitting kit (or opt for ABS corner brackets)
2 x 3m cable with MC4 connectors at one end, bare cable at the other
1 x double cable feed gland
1 x tube elastic adhesive
1 x user manual

Warranty

10-year panel warranty
