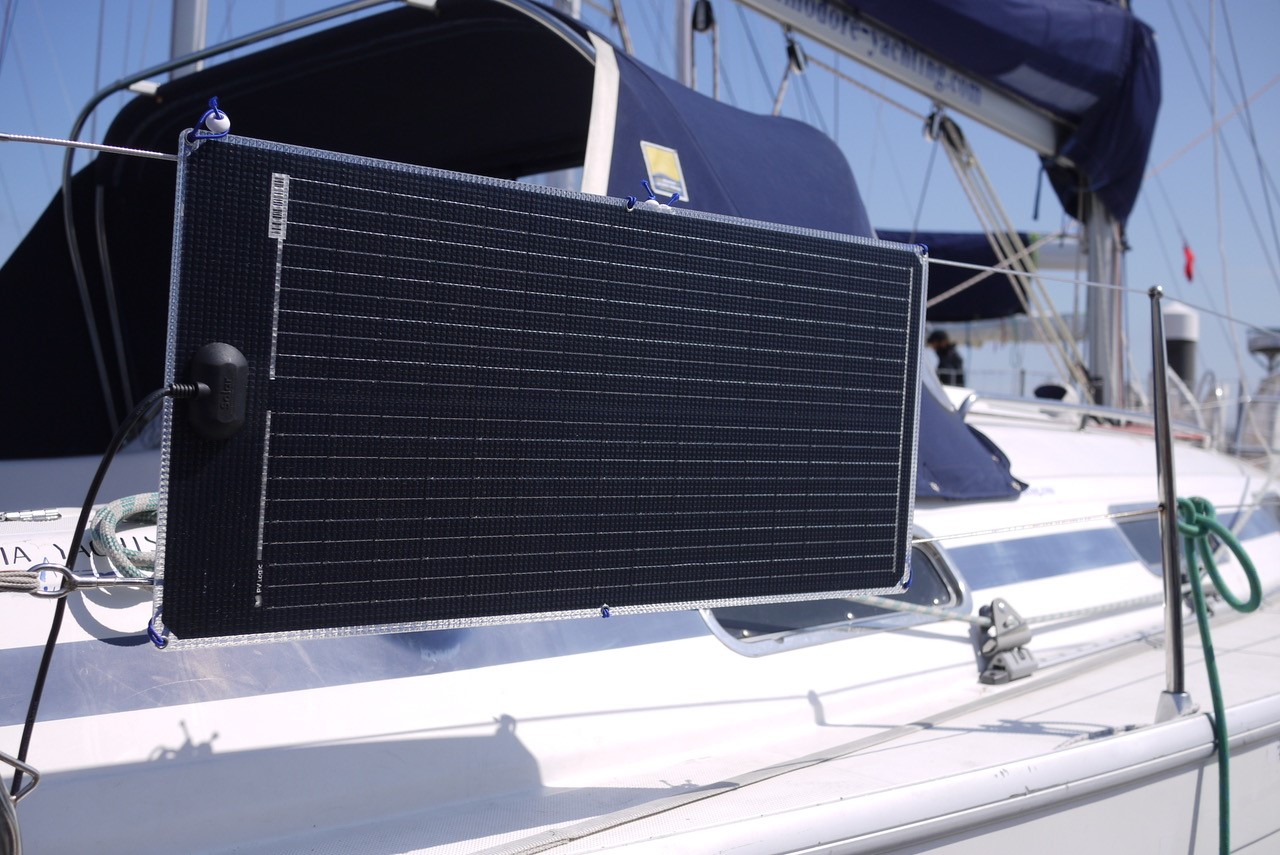

PV Logic Flexi solar panels are the ultimate choice for the challenges of the marine environment

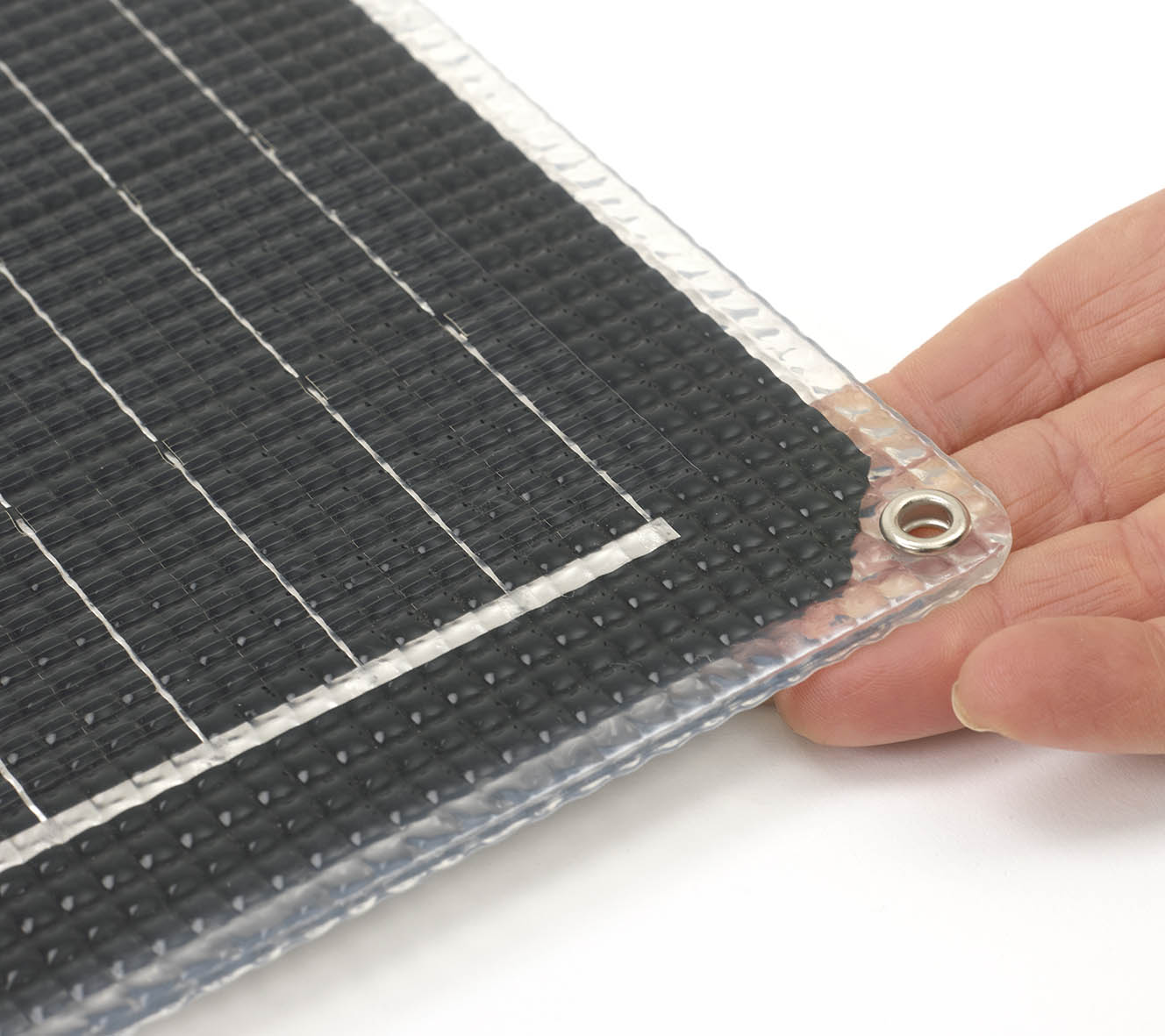

The 60W panel has six stainless steel eyelets for securing the panel with stainless steel fixings.

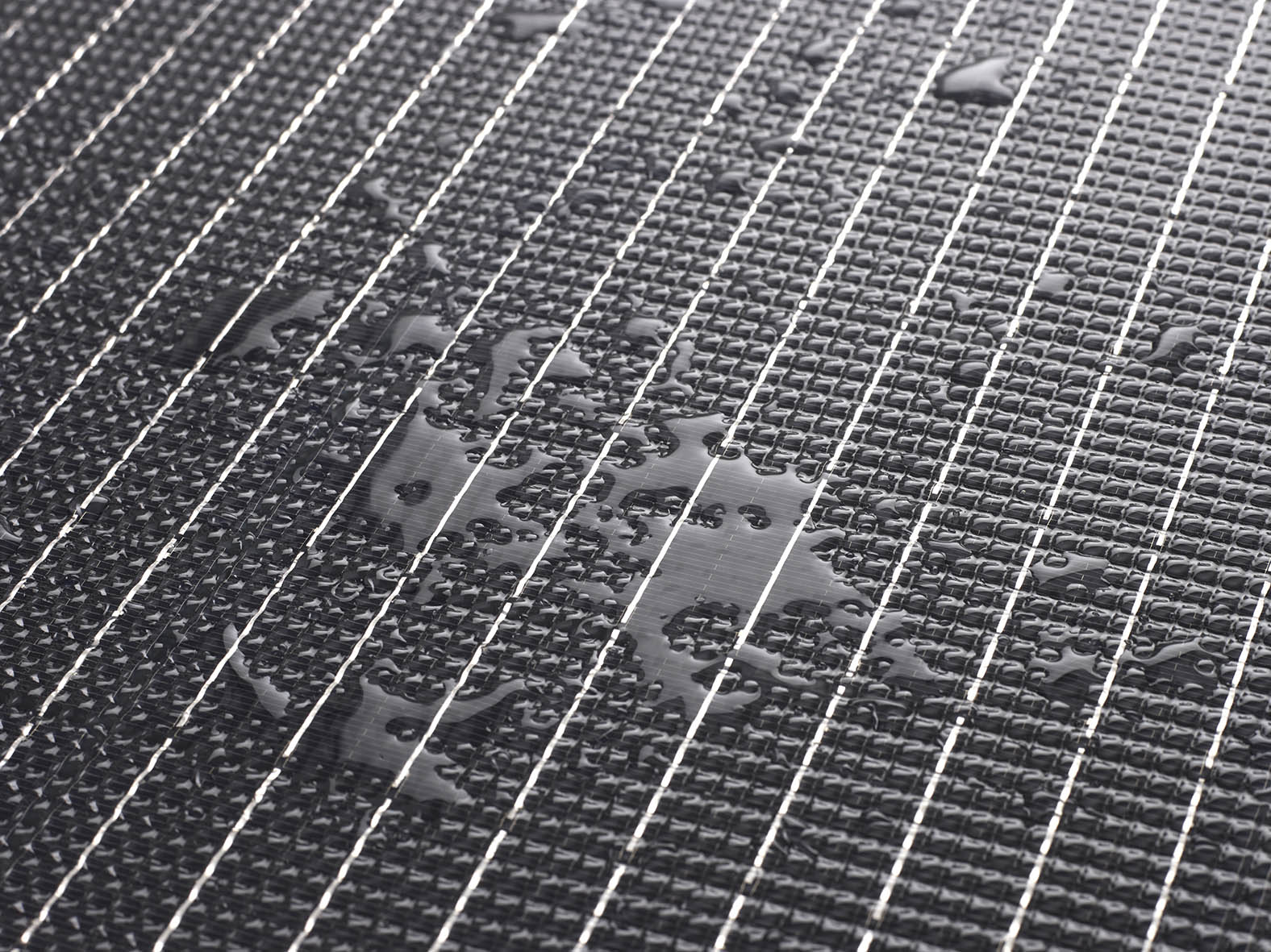

Completely waterproof
Each panel is assembled to ensure complete encapsulation. This ensures the six layer heavy duty laminate protects the solar cell circuit from extreme conditions. The junction box is also injected with special silicon, guaranteeing no water ingress.
Superior design

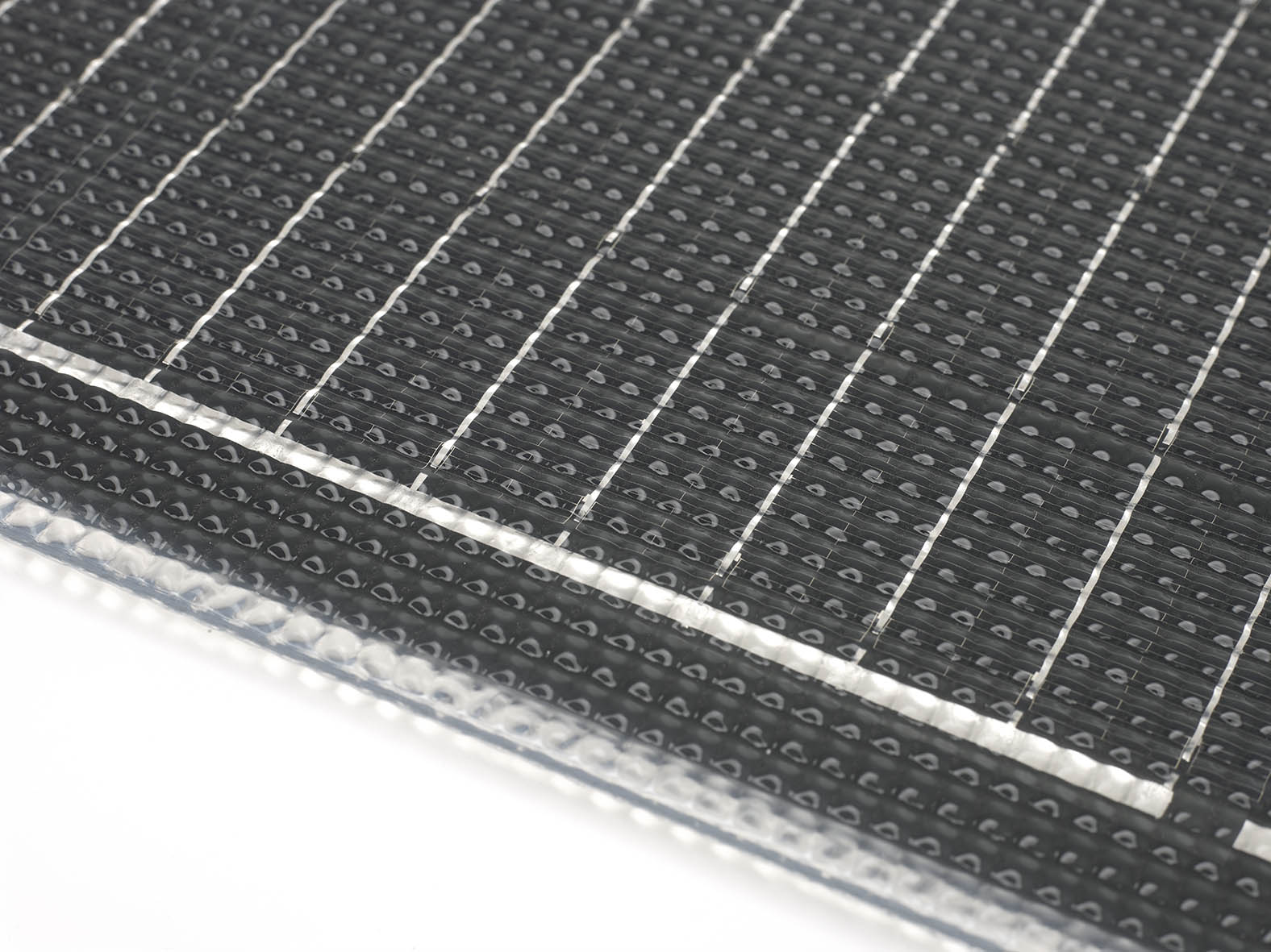

There are no square edges on a PV Logic flexi double ETFE solar panel! Rounded panel corners and a unique curved junction box provide superior adhesion, no snag lamination and no sharp edges. The junction box is mechanically fixed in addition to being bonded to the panel. Strain relief is provided for the fitted 4m UV stabilised PV cable ensuring it cannot be accidentally pulled from the junction box.
Features
Water resistant, robust construction for outdoor use.
In built diode protects against battery discharge
Technical Specification
Key
- Vmp - Nominal voltage
- Imp - Nominal current
- Isc - Short circuit current
- Watts and Amp hours/day based on six hours of average daily peak sunlight hours.
Contents (panels kits)
1 x 60W semi-flexible double ETFE solar panel
1 x 4m cable (attached)
1 x 10A in-line charge controller
1 x Wago terminal connector
1 x Connecting cable with crocodile clips
1 x Connecting cable with ring terminals
Warranty
The PV Logic Double ETFE flexi panels come with a 2-year warranty. To ensure your panel stays in top condition, and the warranty remains valid, please avoid walking on it.
The PV Logic Double ETFE range of panels are NOT highly flexible. They are designed to fit flush to a surface with a curve of no greater than 3 degrees or 3cm per 1m panel length. Therefore, when handling the panel during delivery, storage and prior to installation please be very careful not to allow the panel to bend.
Once installed, the panel is extremely tough and resilient but before the panel is fitted it is vulnerable to solar cell breakage if the panel bends excessively. Therefore, we recommend using two people to handle the panel and box at all times prior to, and during, installation. Failure to follow this guidance will invalidate the warranty.
