60W Flexi Solar Panel - black rear exit

The 60W PV Logic flexi solar panel is often a standard fit for caravan and campervan manufacturers. Delivering up to 360W per day, the 60W panel is suitable for powering most DC and some AC appliances via a separately purchased inverter. Benefiting from a two year product warranty, it is supplied with a 4m cable, shading diode box, terminals, fuse and user manual. NOTE – A charge controller will be needed to protect a battery from reverse feed and overcharging. ... View more

Add Charge Controller
Which controller do I need?
£250.00
Product code: n/a
Product information

Overview

Product support

Find the user manual, advice on expanding a solar system and answers to frequently asked questions on our dedicated support page for PV Logic Flexi Solar Panels.

PV Logic Flexi solar panels are the ultimate choice for flat or slightly curved surfaces.

Benefit from the semi-flexible panel's resilience

The ETFE top layer gives the PV Logic flexi extra resilience in really tough conditions.

Completely waterproof

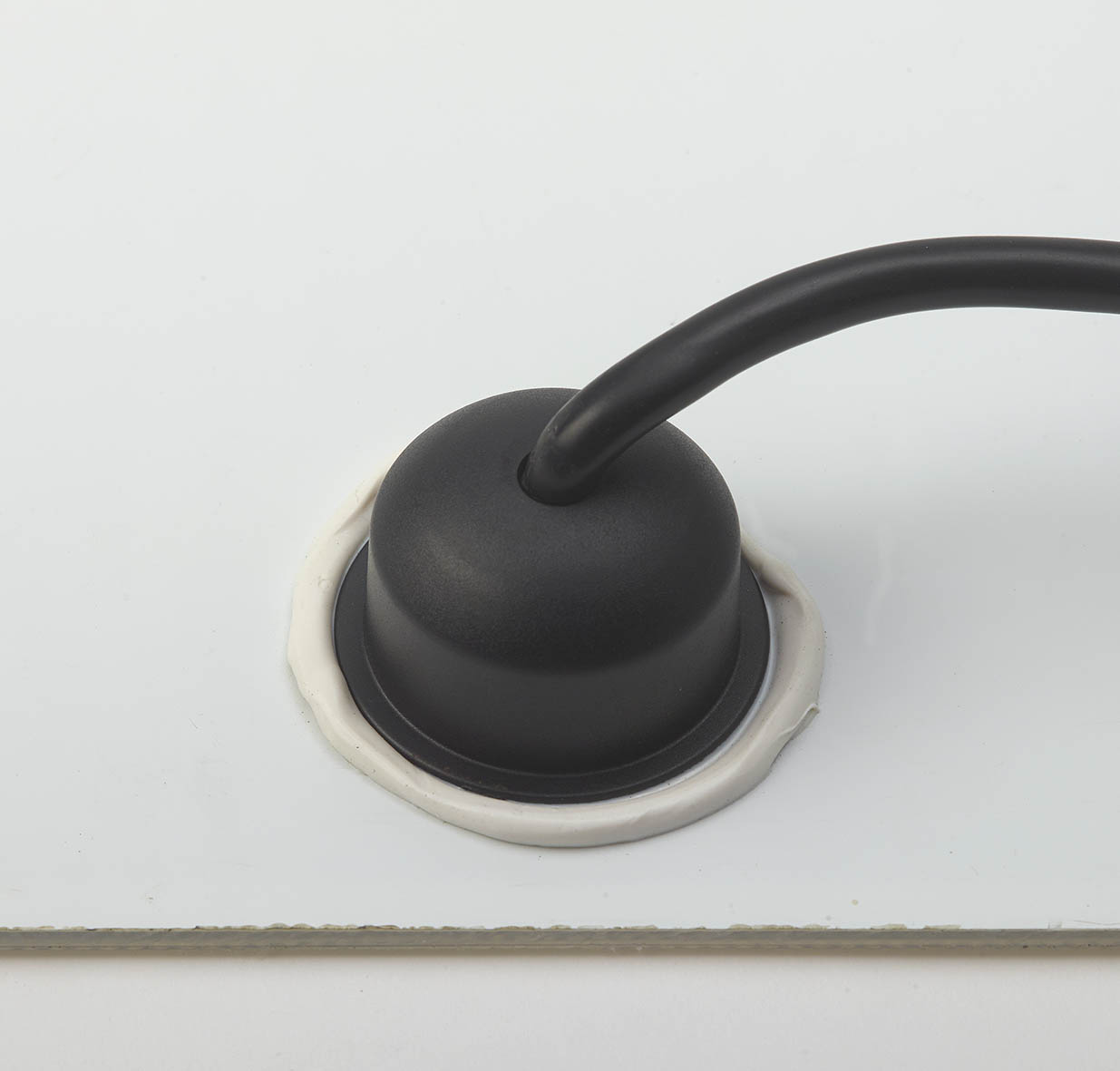

Each panel is assembled to ensure complete encapsulation. This ensures the six layer heavy duty laminate protects the solar cell circuit from extreme conditions. The junction box is also injected with special silicon, guaranteeing no water ingress.

Superior design

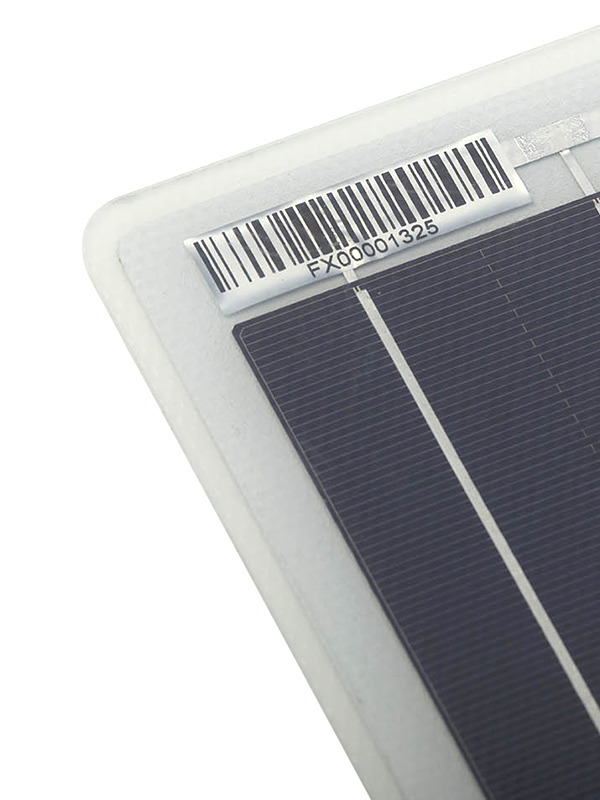

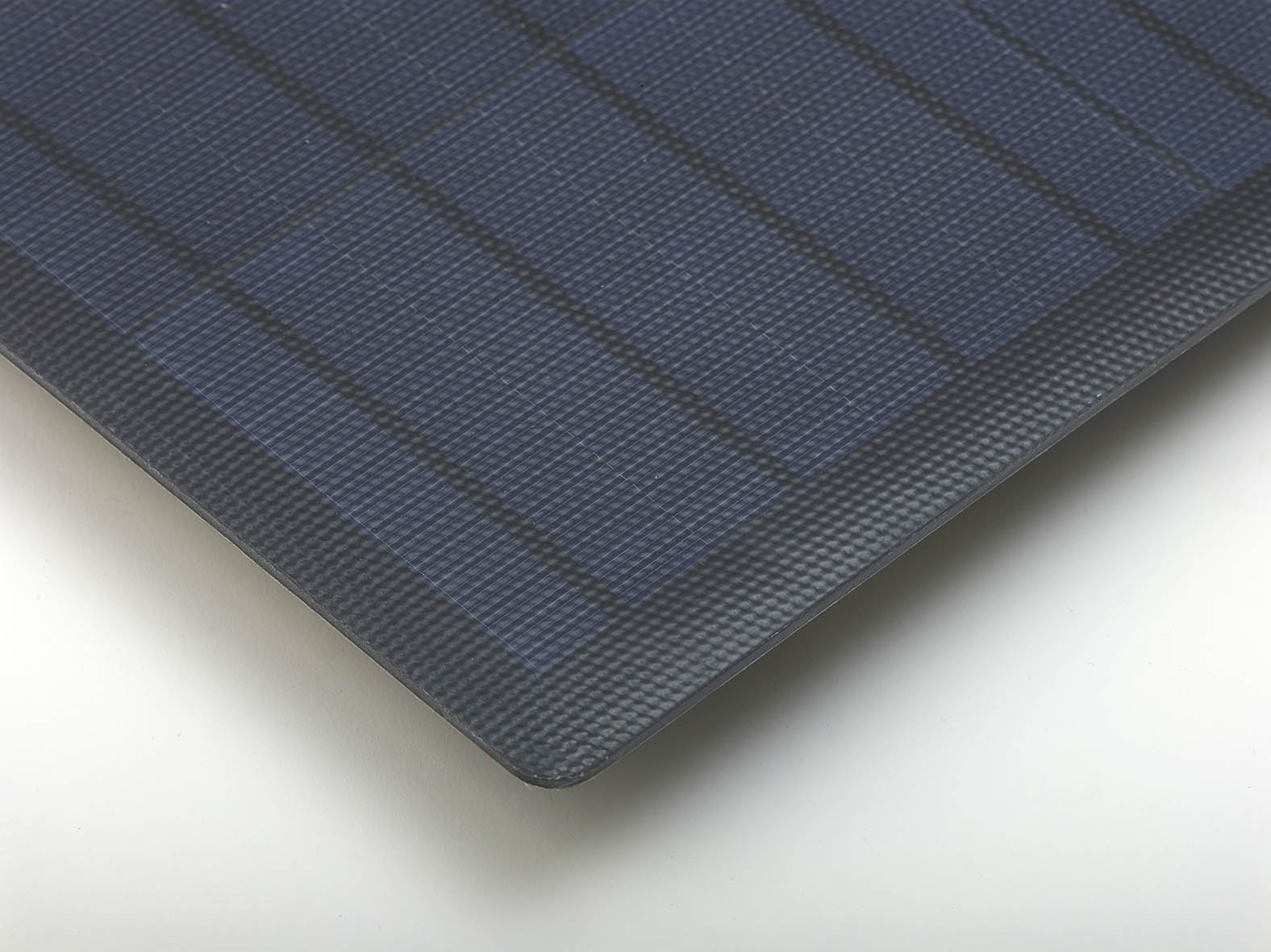

There are no square edges on a PV Logic flexi solar panel! Rounded panel corners and a unique curved junction box provide superior adhesion, no snag lamination and no sharp edges.

Underside cable exit

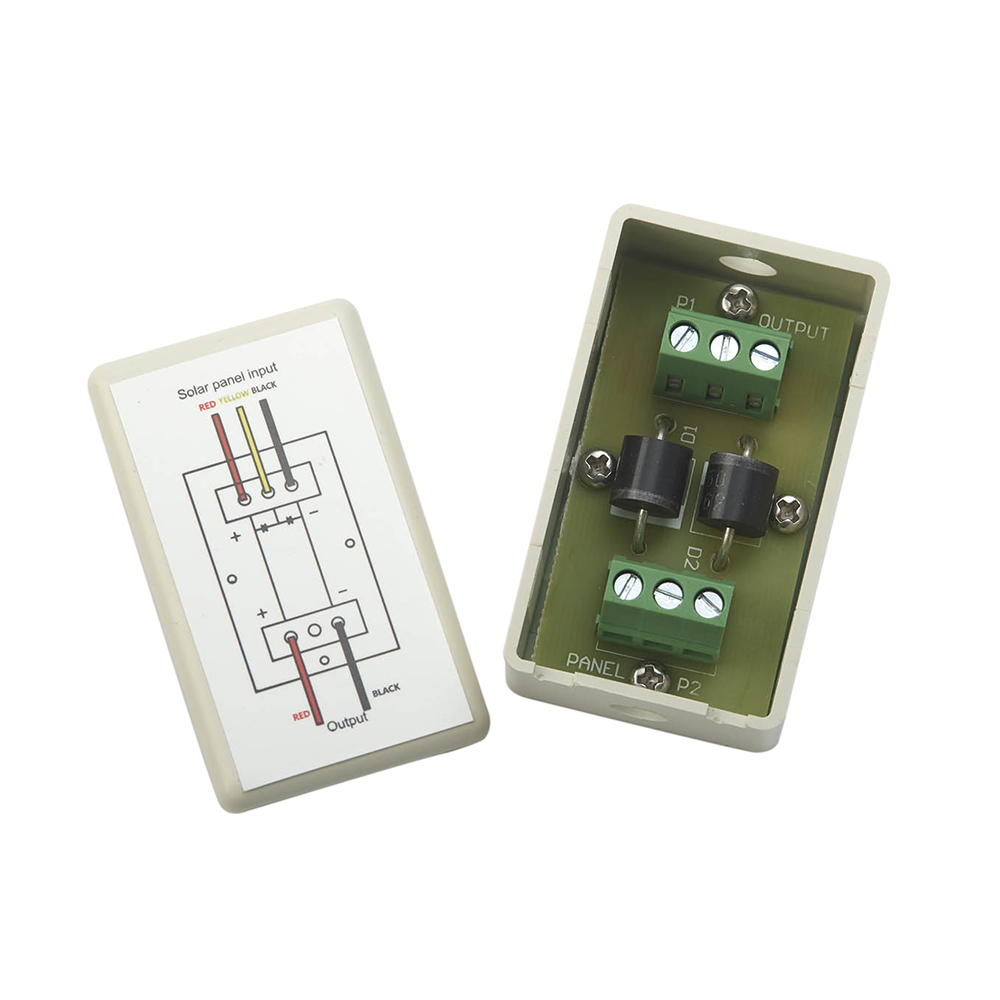

The cable of the 60W flexi panel exits the panel from the underside allowing for a completely flush fit to your roof or decking. A remote shading diode box is ensures consistent performance even in partially shady conditions.

Easy fix

The flexi range can be bonded to flat or slight curved surfaces (3cm curve per metre) such as painted aluminium, metal, GRP and fibreglass using Henkel MS939 Elastic Adhesive. For more information about what sets the PV Flexi range apart from other panels click here.

Installation method

Please only use the glue pattern below (this is covered in more detail in the instructions), which ensures air flow under the panel is achieved preventing heat build-up and potential warping under extreme heat.

Add a controller

The PV Logic range of charge controllers includes the 10A and 20A dual battery PWM charge controllers and, for the ultimate in rapid solar charging, there is the all new MPPT Pro.

The MPPT Pro charge controller increases solar yield by up to 20% over a standard charge controller by artificially modifying the voltage from s solar panel system to actively match any battery's requirements. This means that whatever the weather conditions your panels will deliver maximum power with minimum electrical loss.

The MPPT charge controller comes with its very own free-to-download Bluetooth app (Apple and Android) to display how the solar system is performing. The app software links your smartphone to the MPPT Pro and shows performance figures for your leisure battery.

Complete your kit with fixing accessories

Buy PV Logic stands, brackets and fixings here

Features

High efficiency crystalline cell for all weather charging
High efficiency crystalline cell for “all weather” charging
Water resistant, robust construction for outdoor use.
Water resistant, robust construction for outdoor use.
In built diode protects against battery discharge
In built diode protects against battery discharge
Salt spray tested
Salt spray tested
Tough and robust
Tough and robust
UV light tested
UV light tested
2 year product warranty
2 year product warranty

Technical Specification



Power Size Weight
(kg)
Watts per
day (W)
Amp hours
per day (A)
Charge
Controller
Pmax (WP) Vmp (VDC) Imp (A) Voc(V) Isc(A)
5W 240 x 250 x 4mm 0.36 30 1.68 N/A 5 17.6 0.28 21.9 0.31 Download Tech Spec
10W 380 x 250 x 4mm 0.56 60 3.42 N/A 10 17.6 0.57 21.9 0.61 Download Tech Spec
20W 475 x 345 x 4mm 0.79 120 6.84 10A 20 17.6 1.14 21.9 1.23 Download Tech Spec
60W 1450 x 315 x 4mm 3 360 20.22 10A 60 17.8 3.37 22.1 3.64 Download Tech Spec
80W 806 x 665 x 4mm 3.75 480 27.3 10A 80 17.6 4.55 21.9 4.91 Download Tech Spec
100W 1000 x 665 x 4mm 4.3 600 36.84 10A 100 17.6 6.14 21.9 6.68 Download Tech Spec
100W Rear Exit 980 x 650 x 4mm 4.2 600 34.08 10A 100 17.6 5.68 21.9 6.14 Download Tech Spec
120W 1160 x 665 x 4mm 5.6 720 40.92 10A 120 17.6 6.82 21.9 7.36 Download Tech Spec
150W 1515 x 665 x 4mm 6.7 900 51.12 20A 150 17.6 8.52 21.9 9.2 Download Tech Spec
150W Rear Exit 1475 x 665 x 4mm 6.7 900 51.12 20A 150 17.6 8.52 21.9 9.2 Download Tech Spec


Key

  • Vmp - Nominal voltage
  • Imp - Nominal current
  • Isc - Short circuit current
  • Watts and Amp hours/day based on six hours of average daily peak sunlight hours.

Contents
1 x 60W semi-flexible solar panel - black rear exit
1 x 1m cable (attached)
1x 4m cable (to connect from shading diode box to charge controller and battery)
1x shading diode box
1 x fuse & holder
4 x ring terminals
1 user manual



Warranty

Two year product warranty
