60W Flexi Solar Panel Roof and Deck Top Kit - black rear exit

This 60W PV Logic solar panel roof and deck top kit enables the solar panel to be professionally fitted to the roof of a caravan, motorhome or yacht. Benefitting from a two year product warranty, the 60W solar panel is often a standard fit for caravan and campervan manufacturers and delivers up to 390W per day. It is suitable for powering most DC and some AC appliances via a separately purchased inverter. The kit comes with all you need to fit the panel including a 10A dual battery charge controller, shading diode box, elastic adhesive, a 4m cable, connectors, fuse and user manual. There's also an option to upgrade to the MPPT Pro Plus charge controller.... View more

Upgrade Charge Controller
Which controller do I need?
£310.00
Product code: n/a
Product information

Overview

PV Logic Flexi solar panels are the ultimate choice for flat or slightly curved surfaces.

Benefit from the semi-flexible panel's self-healing top surface

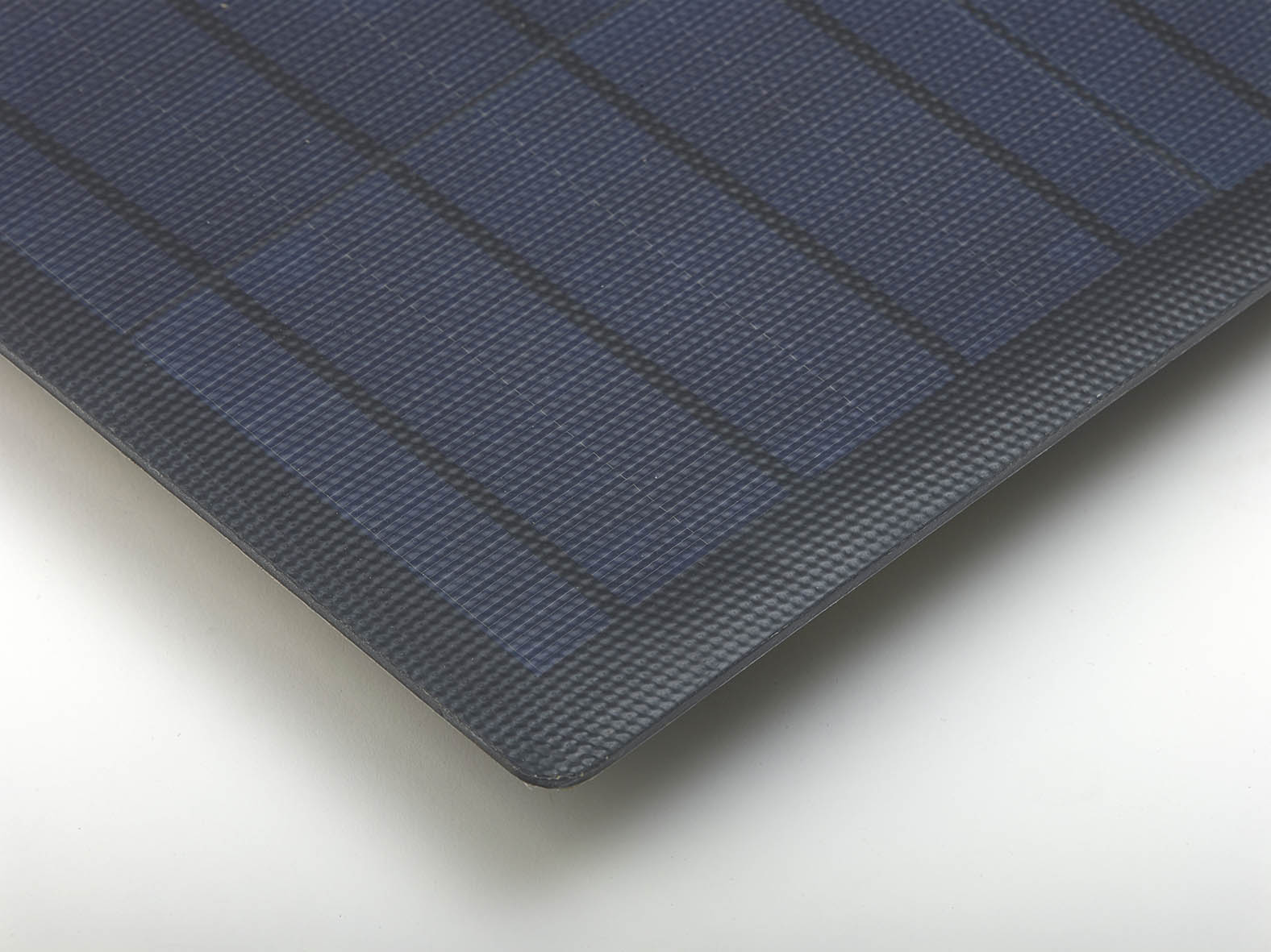

The ETFE top layer gives the PV Logic flexi extra resilience in really tough conditions. ETFE has a memory effect or self-healing capacity in the event the panel comes into contact with branches etc, thus ensuring any slight abrasions are ‘healed’ within a few hours. The semi-flexible range can even be walked on with soft deck shoes! During production the ETFE is dimpled to further protect the panel and provide an anti-slip surface, particularly useful if the panel is fitted to a boat deck.

Completely waterproof

Each panel is assembled to ensure complete encapsulation. This ensures the six layer heavy duty laminate protects the solar cell circuit from extreme conditions. The junction box is also injected with special silicon, guaranteeing no water ingress.

Cells protected from hot spots

Where used on a camper van or boat, partial shading of a solar panel is typical. In these circumstances, heat build-up and damaging hot spots can occur leading to a significantly reduced life cycle of the panel. The larger 60w and above PV Logic flexi panels have up to two shading diodes housed within the fully waterproof junction box to prevent this occurrence.

Superior design

There are no square edges on a PV Logic flexi solar panel! Rounded panel corners and a unique curved junction box provide superior adhesion, no snag lamination and no sharp edges. The junction box is mechanically fixed in addition to being bonded to the panel. Strain relief is provided for the fitted 4m UV stabilised PV cable ensuring it cannot be accidentally pulled from the junction box.

 Easy fix

The flexi range can be bonded to flat or slight curved surfaces (3cm curve per metre) such as painted aluminium, metal, GRP and fibreglass using Simson ISR 70-03. All panels come with a two year product warranty. For more information about what sets the PV Logic Flexi range apart from other panels click here.

Installation method

Please only use the glue pattern below (this is covered in more detail in the instructions), which ensures air flow under the panel is achieved preventing heat build-up and potential warping under extreme heat.

Take control

The PV Logic flexi roof and deck top kit includes the 10Ah dual battery PWM charge controller. For the ultimate in rapid solar charging, you can upgrade to the all new MPPT Pro.

The MPPT Pro charge controller increases solar yield by up to 20% over a standard charge controller by artificially modifying the voltage from s solar panel system to actively match any battery's requirements. This means that whatever the weather conditions your panels will deliver maximum power with minimum electrical loss.

The MPPT charge controller comes with its very own free-to-download Bluetooth app (Apple and Android) to display how the solar system is performing. The app software links your smartphone to the MPPT Pro and shows performance figures for your leisure battery.

All charge controllers have a two year warranty.

Product support

Find the user manual, advice on expanding a solar system and answers to frequently asked questions on our dedicated support page for PV Logic Flexi Solar Panels.

Features

Water resistant, robust construction for outdoor use.
Water resistant, robust construction for outdoor use.
In built diode protects against battery discharge
In built diode protects against battery discharge
Salt spray tested
Salt spray tested
Tough and robust
Tough and robust
UV light tested
UV light tested
2-year panel warranty
2-year panel warranty

Technical Specification



Power Size Weight
(kg)
Watts per
day (W)
Amp hours
per day (A)
Charge
Controller
Pmax (WP) Vmp (VDC) Imp (A) Voc(V) Isc(A)
5W 240 x 250 x 4mm 0.36 30 1.68 N/A 5 17.6 0.28 21.9 0.31 Download Tech Spec
10W 380 x 250 x 4mm 0.56 60 3.42 N/A 10 17.6 0.57 21.9 0.61 Download Tech Spec
20W 475 x 345 x 4mm 0.79 120 6.84 10A 20 17.6 1.14 21.9 1.23 Download Tech Spec
60W 1450 x 315 x 4mm 3 360 20.22 10A 60 17.8 3.37 22.1 3.64 Download Tech Spec
80W 806 x 665 x 4mm 3.75 480 27.3 10A 80 17.6 4.55 21.9 4.91 Download Tech Spec
100W 1000 x 665 x 4mm 4.3 600 36.84 10A 100 17.6 6.14 21.9 6.68 Download Tech Spec
100W Rear Exit 980 x 650 x 4mm 4.2 600 34.08 10A 100 17.6 5.68 21.9 6.14 Download Tech Spec
120W 1160 x 665 x 4mm 5.6 720 40.92 10A 120 17.6 6.82 21.9 7.36 Download Tech Spec
150W 1515 x 665 x 4mm 6.7 900 51.12 10A 150 17.6 8.52 21.9 9.2 Download Tech Spec
150W Rear Exit 1475 x 665 x 4mm 6.7 900 51.12 10A 150 17.6 8.52 21.9 9.2 Download Tech Spec


Key

  • Vmp - Nominal voltage
  • Imp - Nominal current
  • Isc - Short circuit current
  • Watts and Amp hours/day based on six hours of average daily peak sunlight hours.

Contents (panels kits)
1 x 60W semi-flexible solar panel - black rear exit
1 x 1m cable (attached)
1x 4m cable (to connect from shading diode box to charge controller and battery)
1 x 10A charge controller (or upgrade to the 20Ah MPPT charge controller)
1x tube elastic adhesive

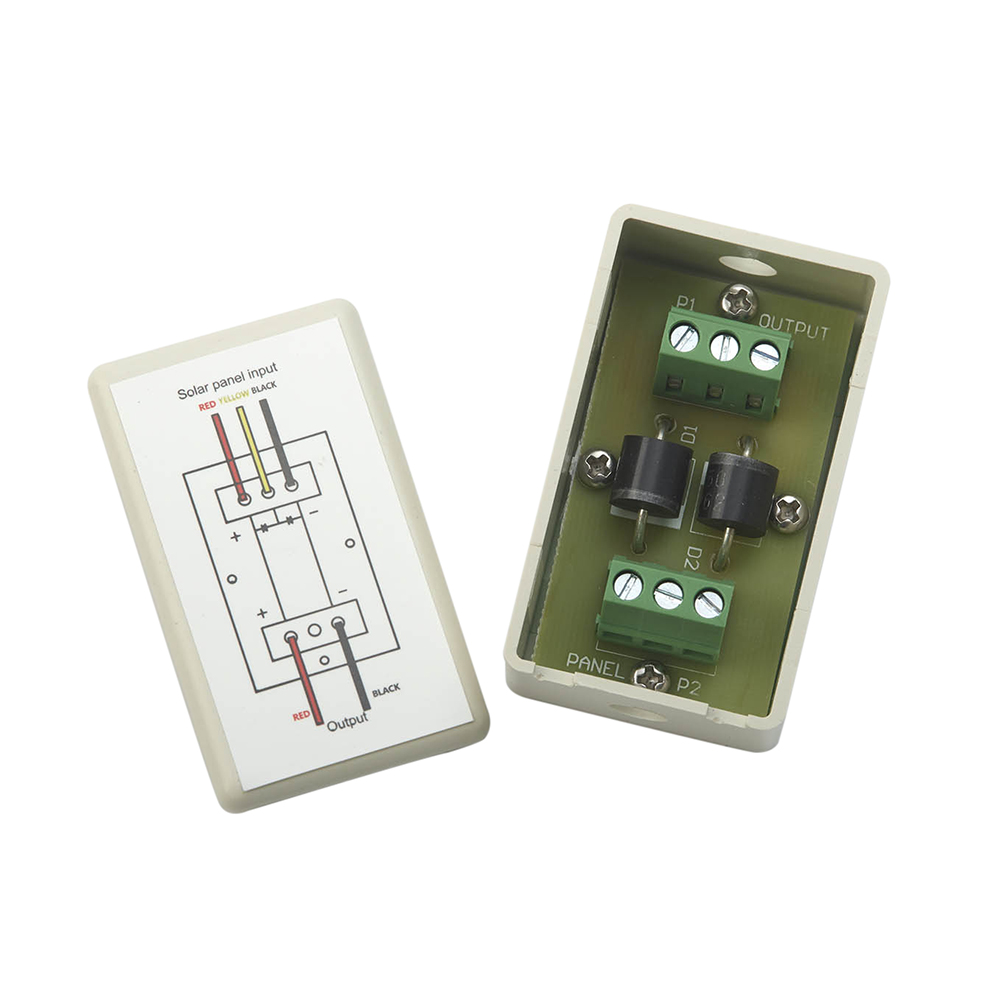

1x shading diode box
1 x fuse & holder
4 x ring terminals
1 x user manual

Warranty

Solar Panel
2-year module warranty
Charge Controller
2-year product warranty
Other kit contents
Five year warranty

All of our semi flexible panels will only bend from the top (location of cable and logos) to the bottom a maximum of 10% of panel length.
Bending the panel greater than this, or trying to bend the panel from left to right, will possibly damage the panel and also invalidate your warranty.
